Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)

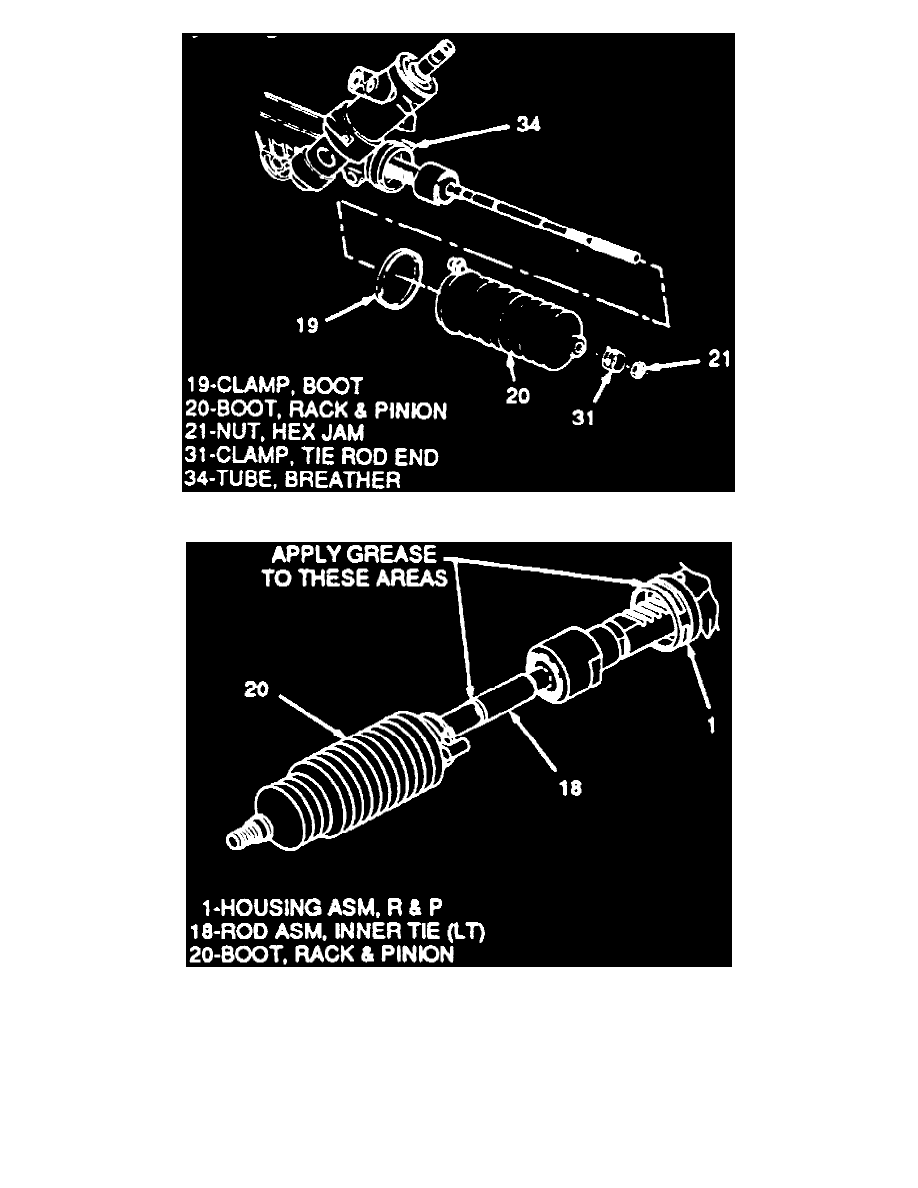

Fig. 15 Boot Replacement
Fig. 16 Boot Seal Application
REMOVAL
1. Remove outer tie rod.
2. Remove hex jam nut from inner tie rod assembly.
3. Remove tie rod end clamp, Fig. 15, then remove and discard boot clamp with side cutters.
4. Mark location of breather tube on housing before removing tube, then remove boot and breather tube.
INSTALLATION
