Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A (1994)

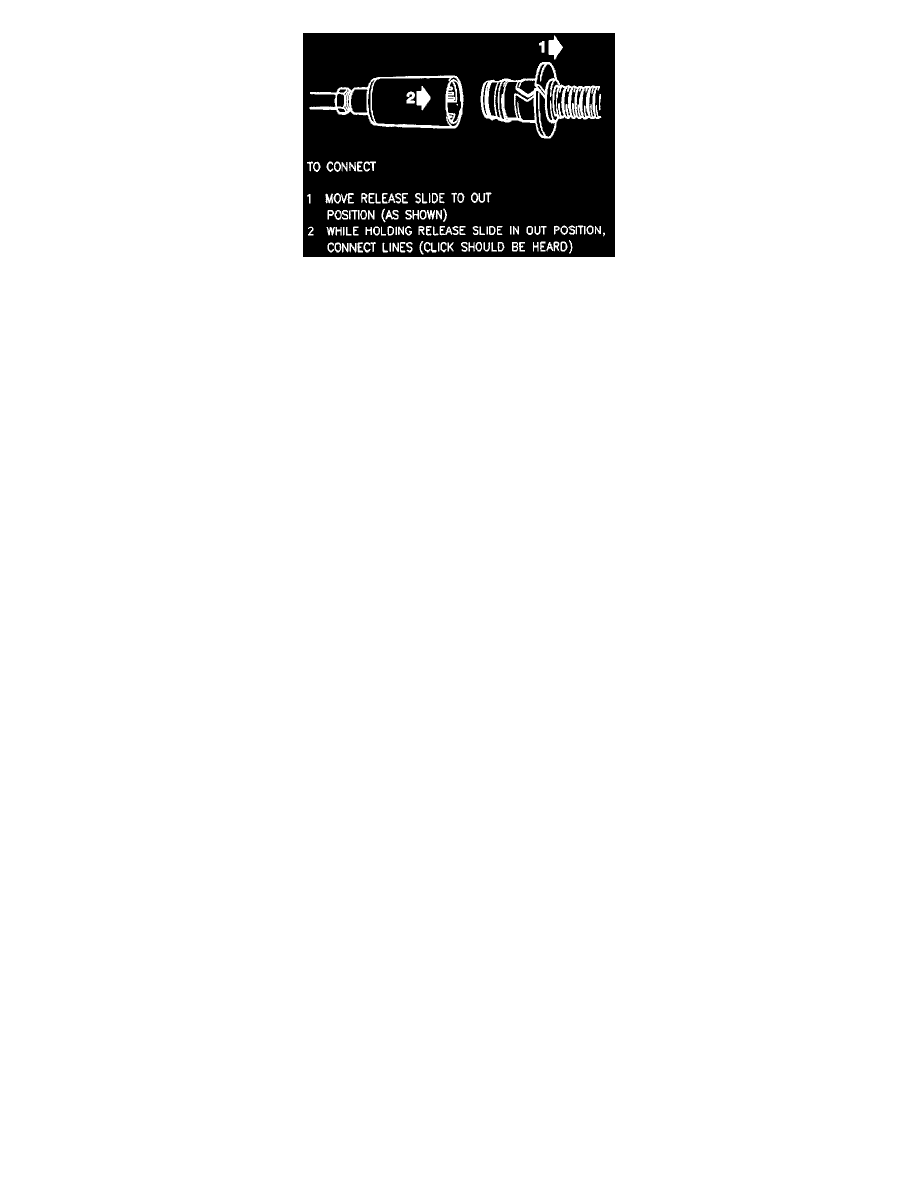

Connecting Clutch Hydraulic Line
REMOVE OR DISCONNECT
1. Negative battery cable.
2. Master cylinder assembly from actuator cylinder assembly.
3. Transaxle assembly.
4. Clutch actuator assembly from transaxle.
INSTALL OR CONNECT
1. Lubricate the inside diameter of the bearing with GM P/N 12345777 or equivalent.
2. Clutch actuator assembly to transaxle.
3. Transaxle assembly.
4. Master cylinder assembly to actuator cylinder assembly.
5. Bleed the hydraulic system, refer to System Bleeding.
6. Negative battery cable.
