Camaro V8-5.7L VIN G (1998)
Crankshaft Main Bearing Seal: Service and Repair

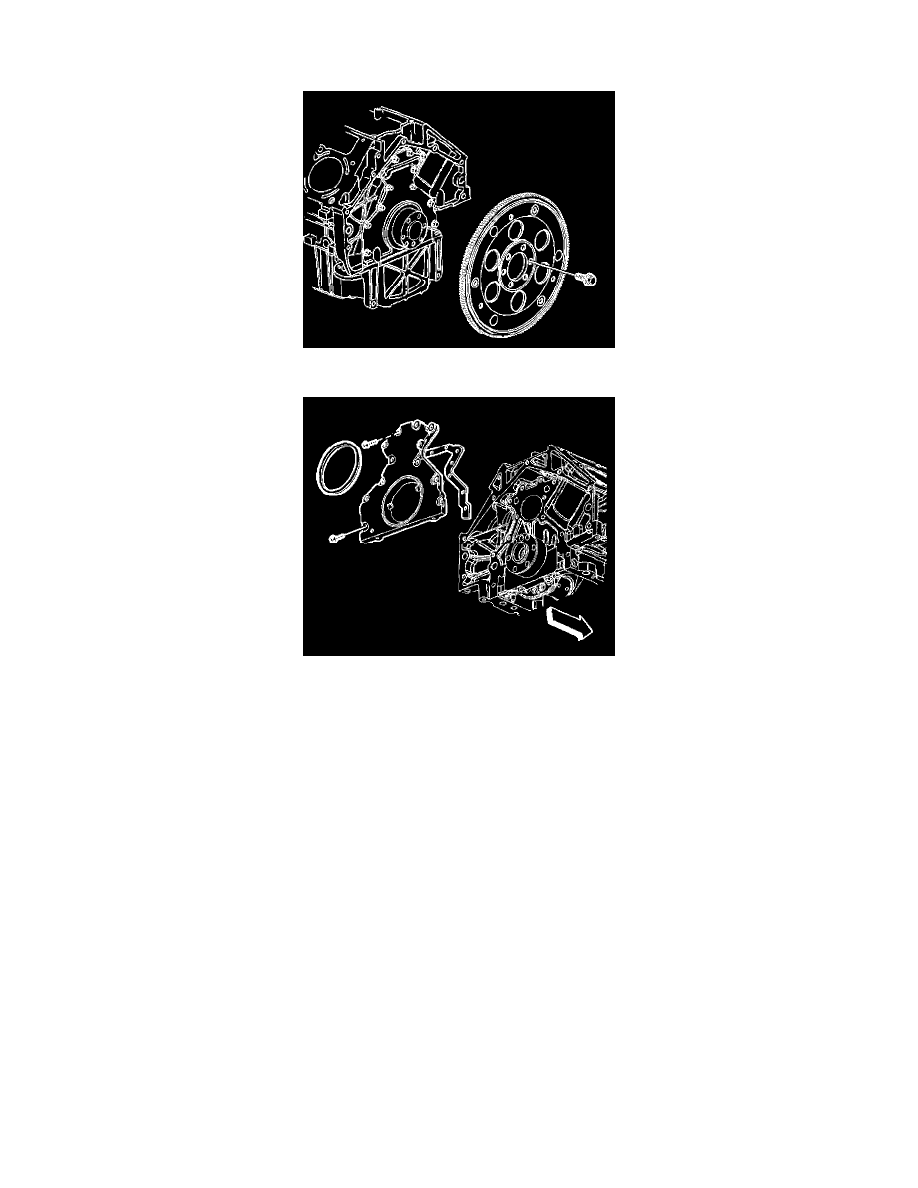

REMOVAL PROCEDURE
1. Remove the flywheel.
2. Remove the crankshaft rear oil seal.
3. Gently pry the seal from the rear cover.
INSTALLATION PROCEDURE
^
Tools Required
-
J41479 Crankshaft Rear Oil Seal Installer
IMPORTANT:
^
Do not lubricate the oil seal inside diameter (ID) or the crankshaft surface.
^
Do not reuse the crankshaft rear oil seal.
1. Lubricate the outside diameter (OD) of the oil seal with clean engine oil.
DO NOT allow oil or other lubricants to contact the seal surface.
2. Lubricate the rear cover oil seal bore with clean engine oil.
DO NOT allow oil or other lubricants to contact the seal surface.
