Camaro V8-5.7L VIN G (1998)
Powertrain Management
Computers and Control Systems
Idle Speed/Throttle Actuator - Electronic
Component Information
Diagrams
Page 1

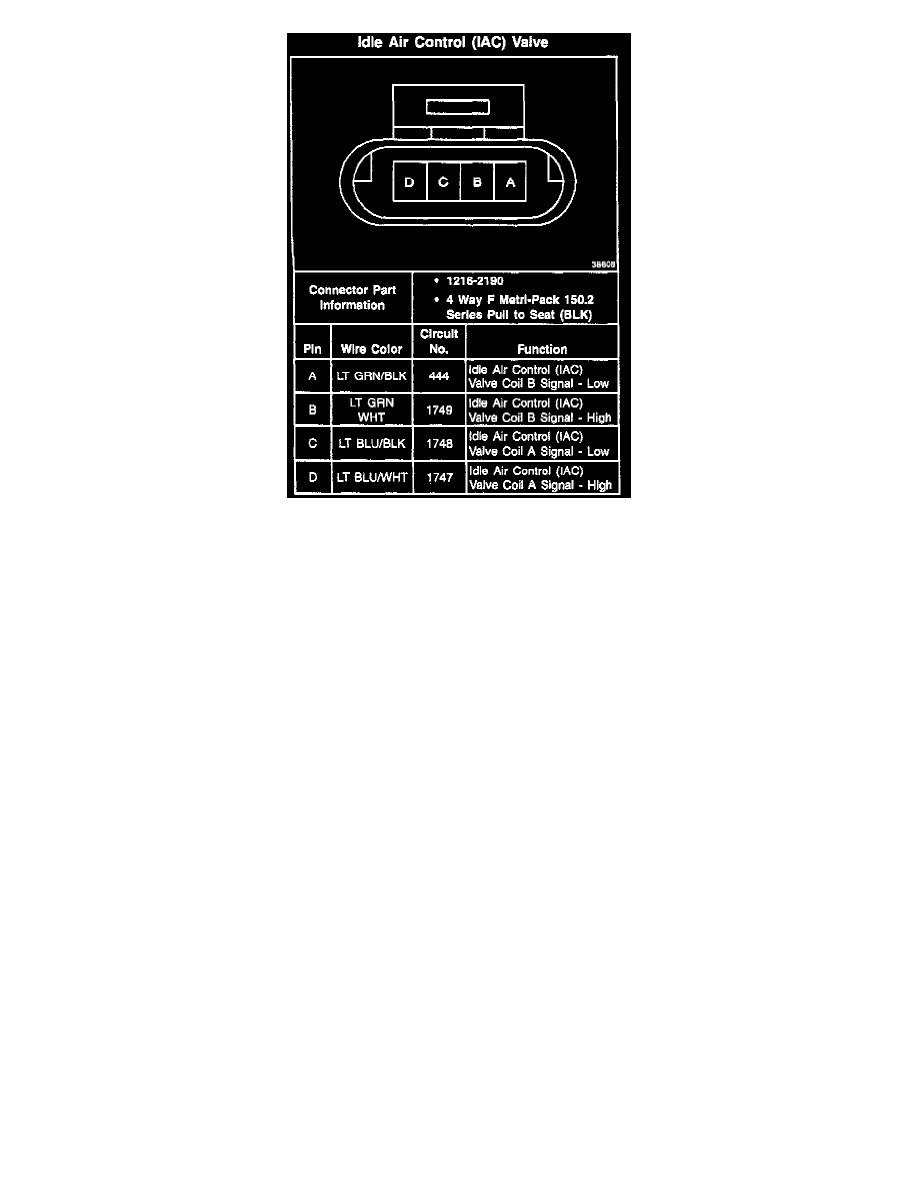

Connector
Powertrain Management
Computers and Control Systems
Idle Speed/Throttle Actuator - Electronic
Component Information
Diagrams
