Page 14

background image

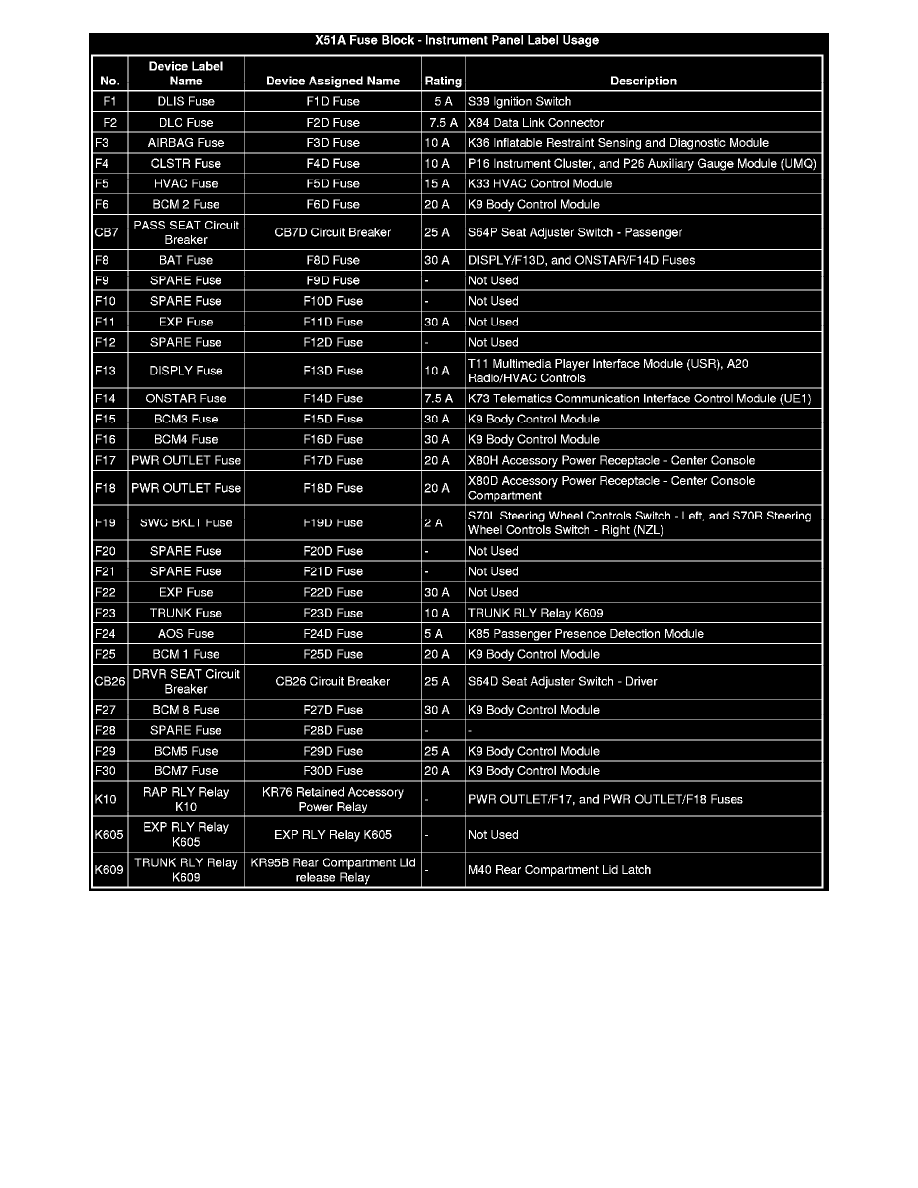

X51A Fuse Block - Instrument Panel Top View

Power and Ground Distribution
Fuse / Locations
Page 7560
