Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)
Convertible Top Frame: Technical Service Bulletins
Folding Top Rear Side Rail - Removal and Installation
Group Ref.: 10 - Body
Bulletin No.: 431029
Date: June, 1994
SERVICE MANUAL UPDATE
SUBJECT:
SECTION 10 - TO ADD FOLDING TOP REAR SIDE RAIL REMOVAL AND INSTALLATION PROCEDURE
MODELS:
1986-94 CHEVROLET CAVALIER
1986-94 PONTIAC SUNBIRD
This bulletin is being issued to add the folding top rear side rail removal and installation procedure not previously provided in Section 10 of the
appropriate Service Manual.

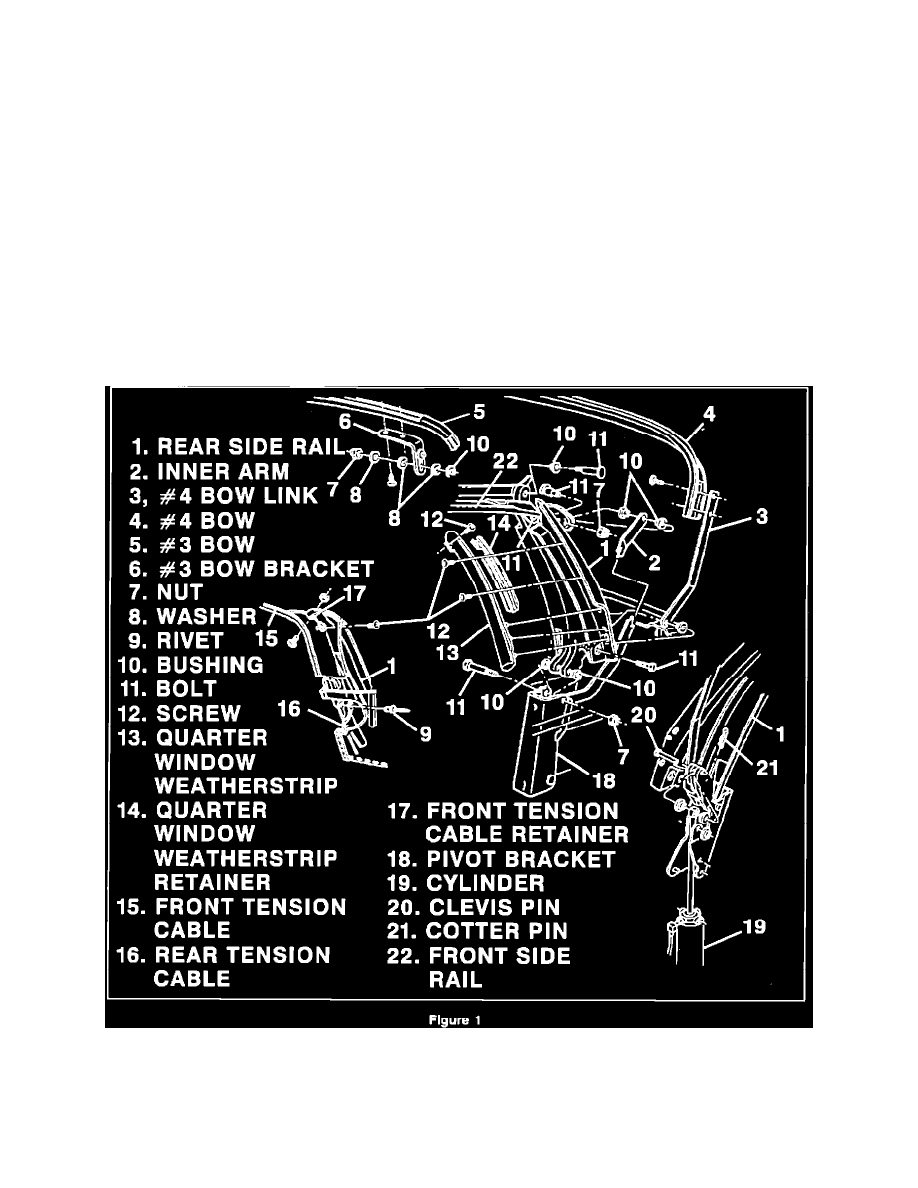

REMOVE OR DISCONNECT: (Refer to illustration)
1.
Clevis pin attaching cylinder to rear side rail.
2.
Quarter window weatherstrip retainer (do not remove 3 lower nuts attaching weatherstrip to rear side rail).
