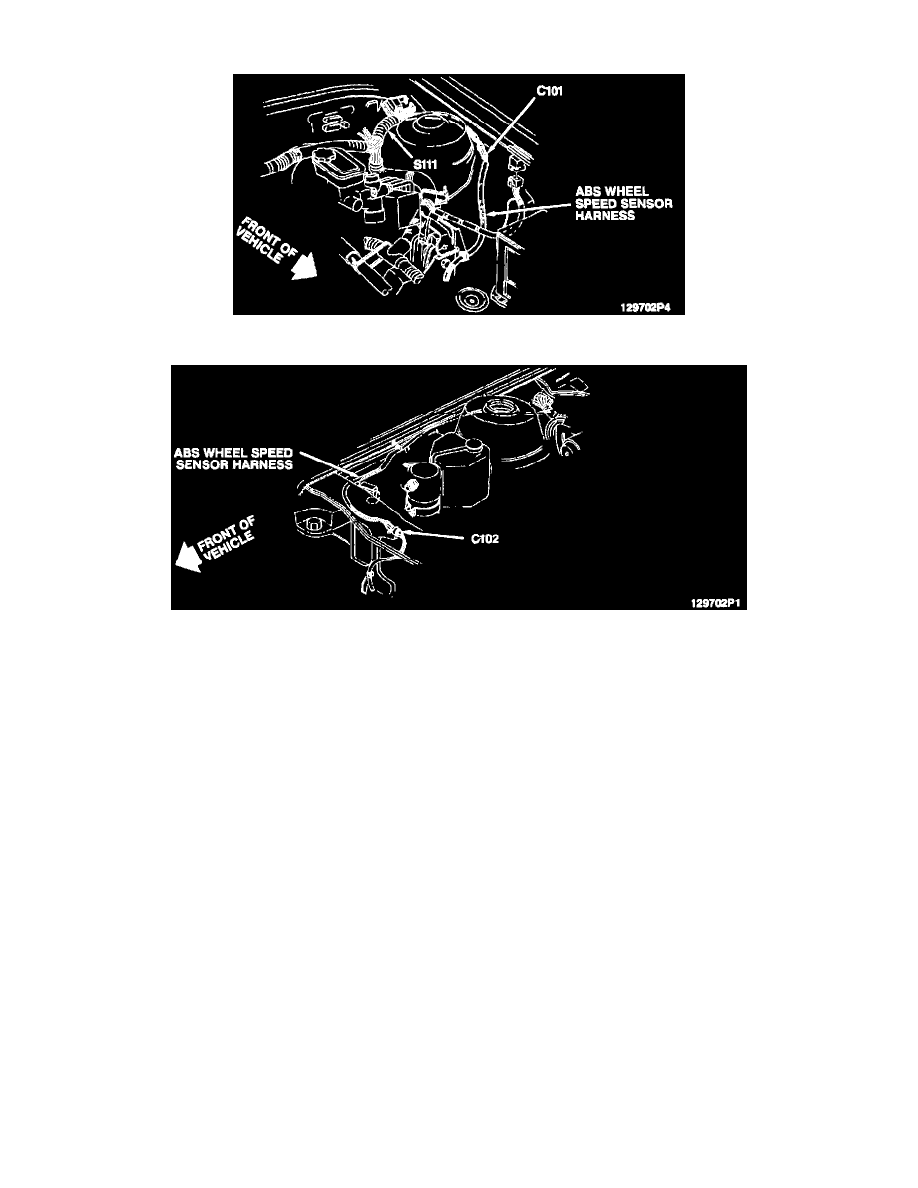

Wheel Speed Sensor: Harness Locations

LH Side Of Engine Compartment

RH Side Of Engine Compartment

Brakes and Traction Control
Antilock Brakes / Traction Control Systems
Wheel Speed Sensor / Component Information
Locations / Component Locations
Page 4533
