Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

Page 1
background image

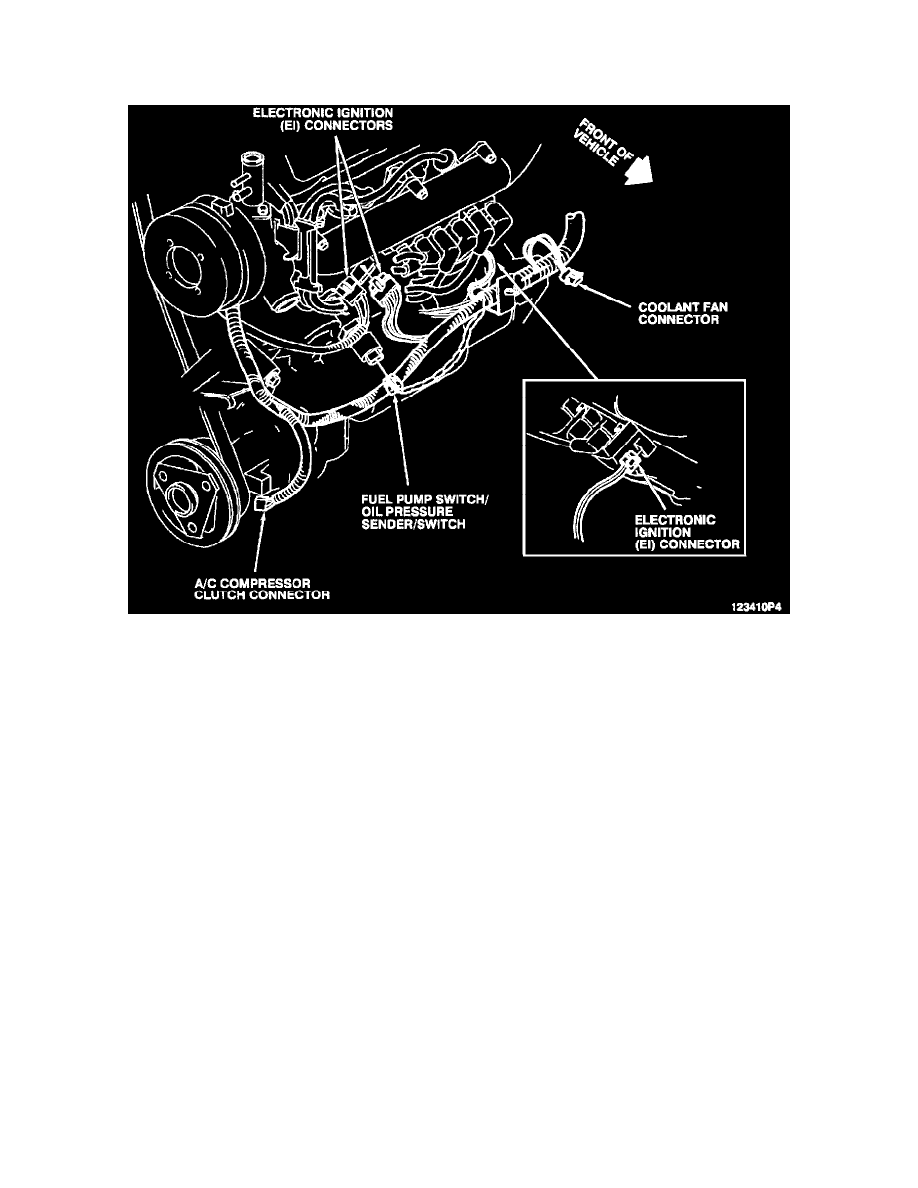

Oil Pressure Switch (For Fuel Pump): Locations
Fuel Pump Switch/Oil Pressure Sender/Switch

RH Front Of Engine Compartment
