Blower Motor: Electrical Diagrams

Heater

Heating and Air Conditioning
Blower Motor / Component Information

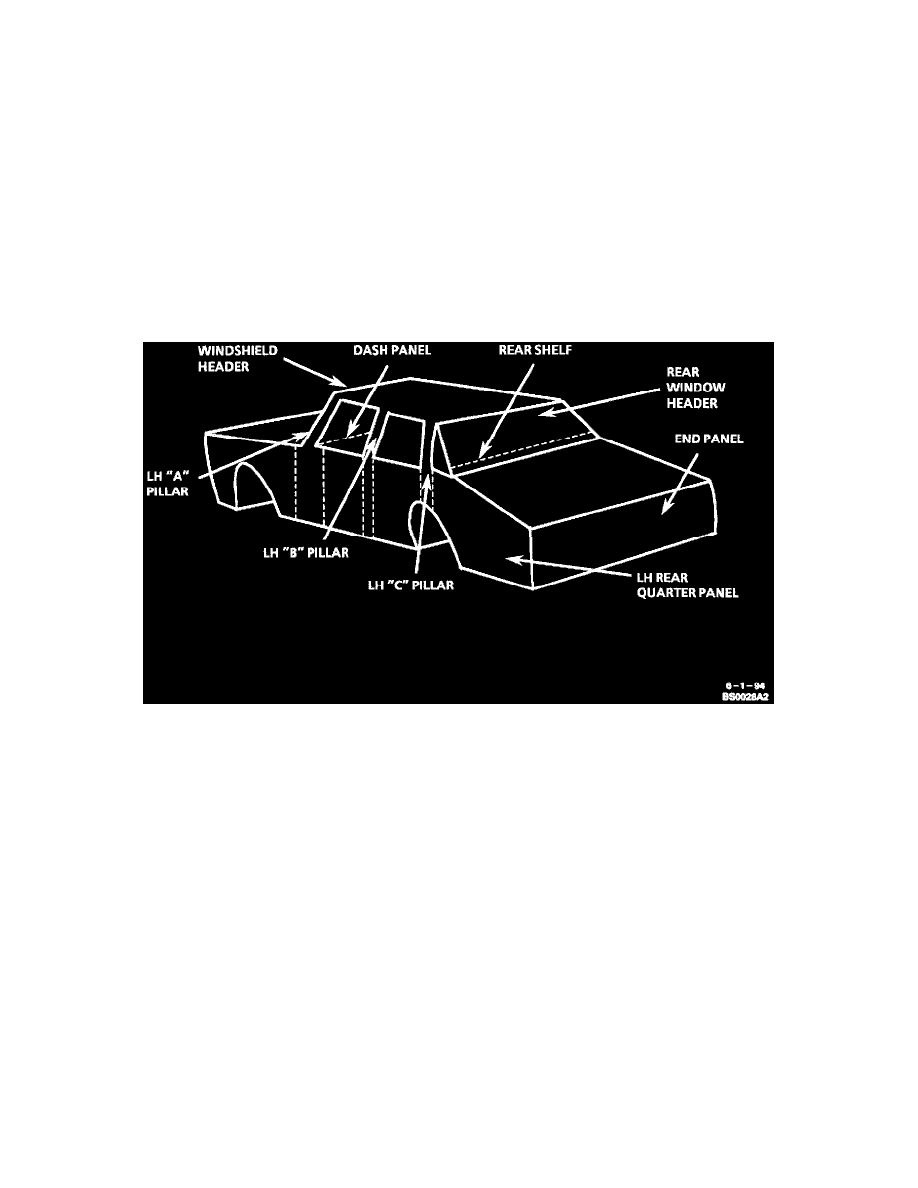

Diagrams / Diagram Information and Instructions
