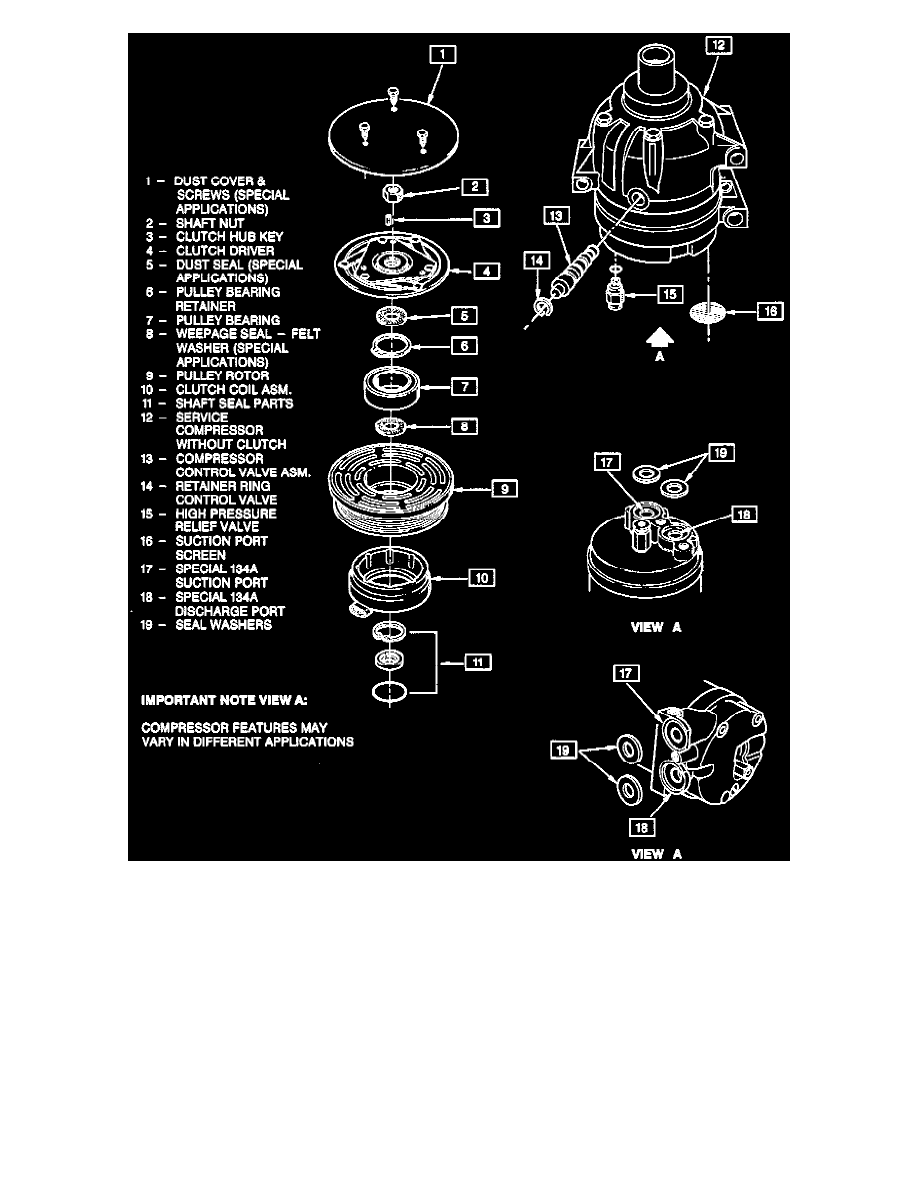

Compressor Components - Disassembled View

Heating and Air Conditioning
Compressor HVAC
Compressor Clutch Hub / Specifications
