Pinout Values and Diagnostic Parameters|Page 2957 > < C1 (Black)|Page 2954

Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

Page 1
background image

Engine Control Module: Pinout Values and Diagnostic Parameters

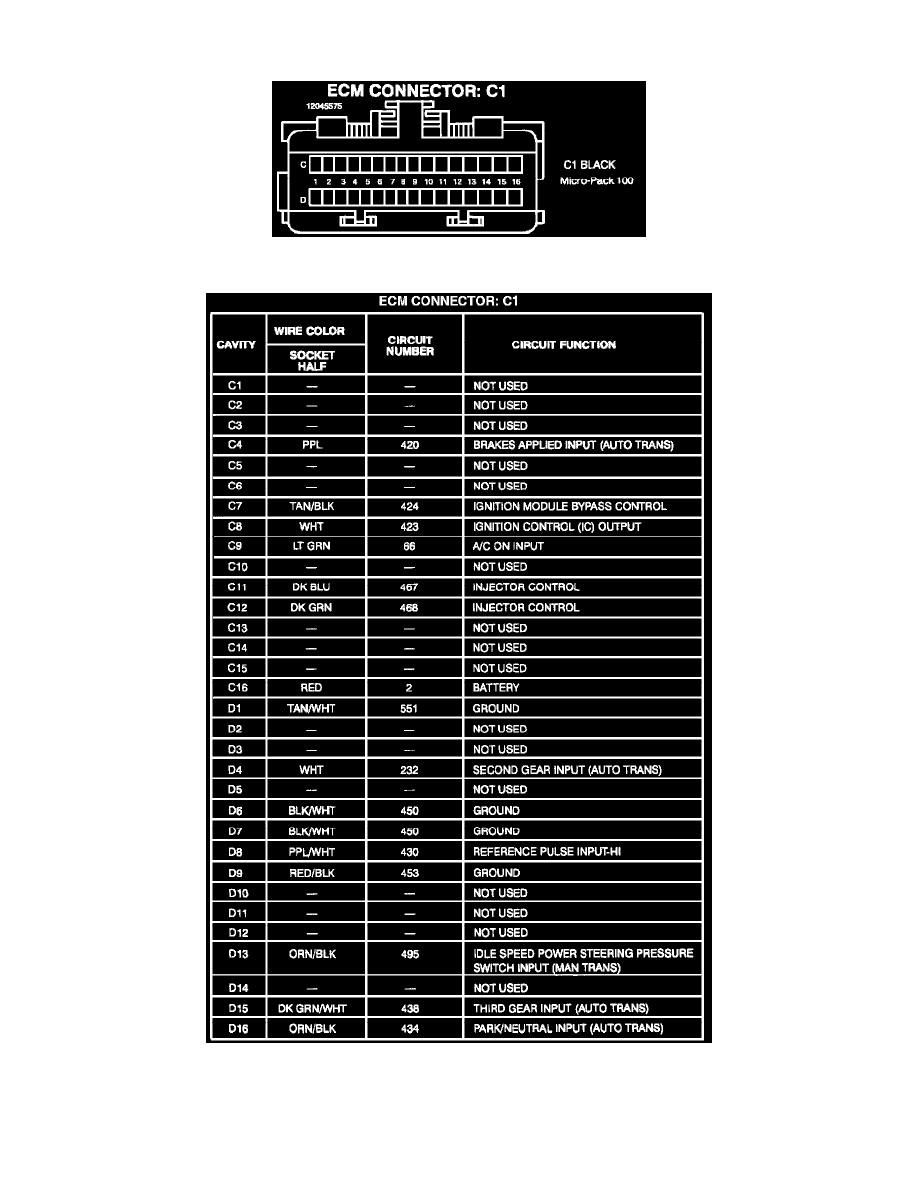

ECM Connector: C1

ECM Connector: C1 (Description)

Pinout Values and Diagnostic Parameters|Page 2957 > < C1 (Black)|Page 2954
