Page 3

background image

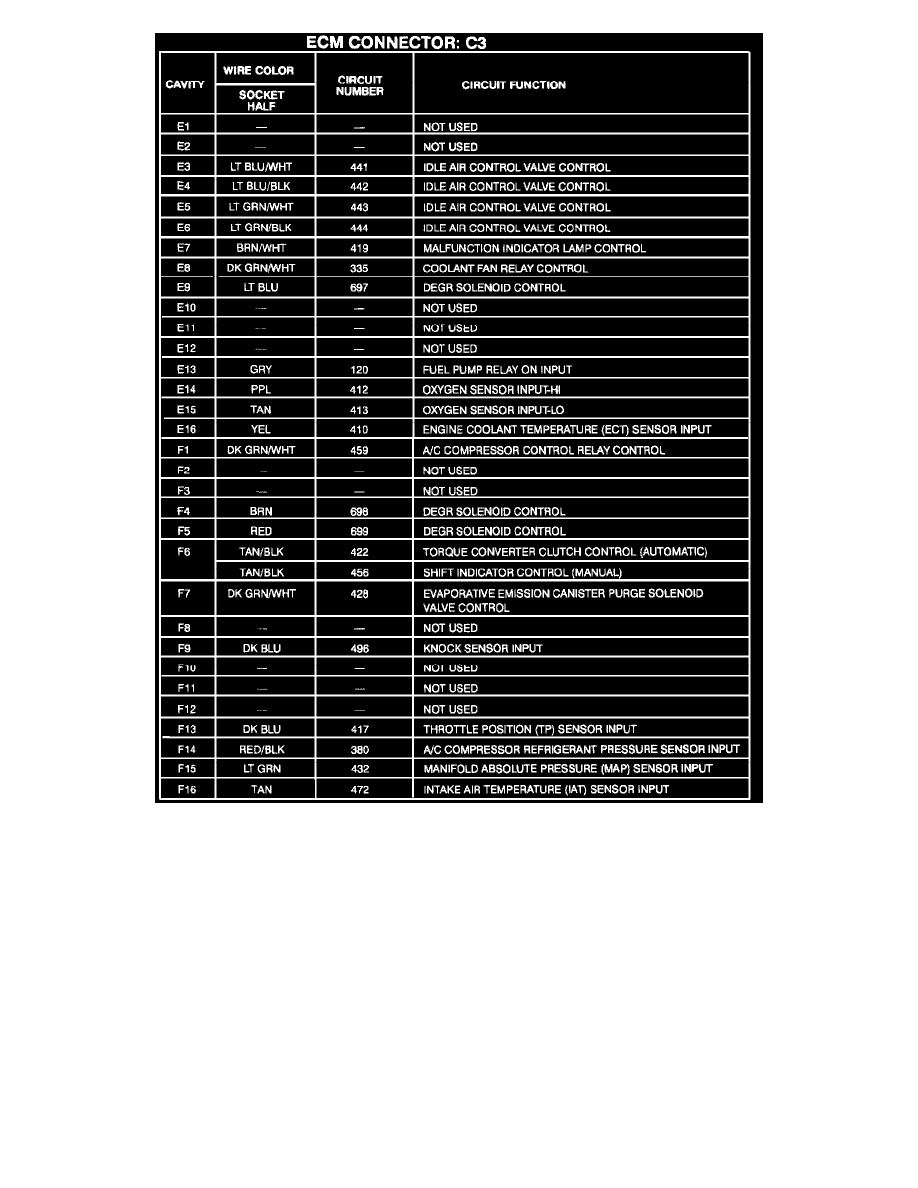

ECM Connector: C3 (Description)

Powertrain Management
Computers and Control Systems
Relays and Modules - Computers and Control Systems / Engine Control Module / Component Information
Testing and Inspection / Pinout Values and Diagnostic Parameters
Page 2958
