Fuel Injector: Testing and Inspection
Part 3 of 3

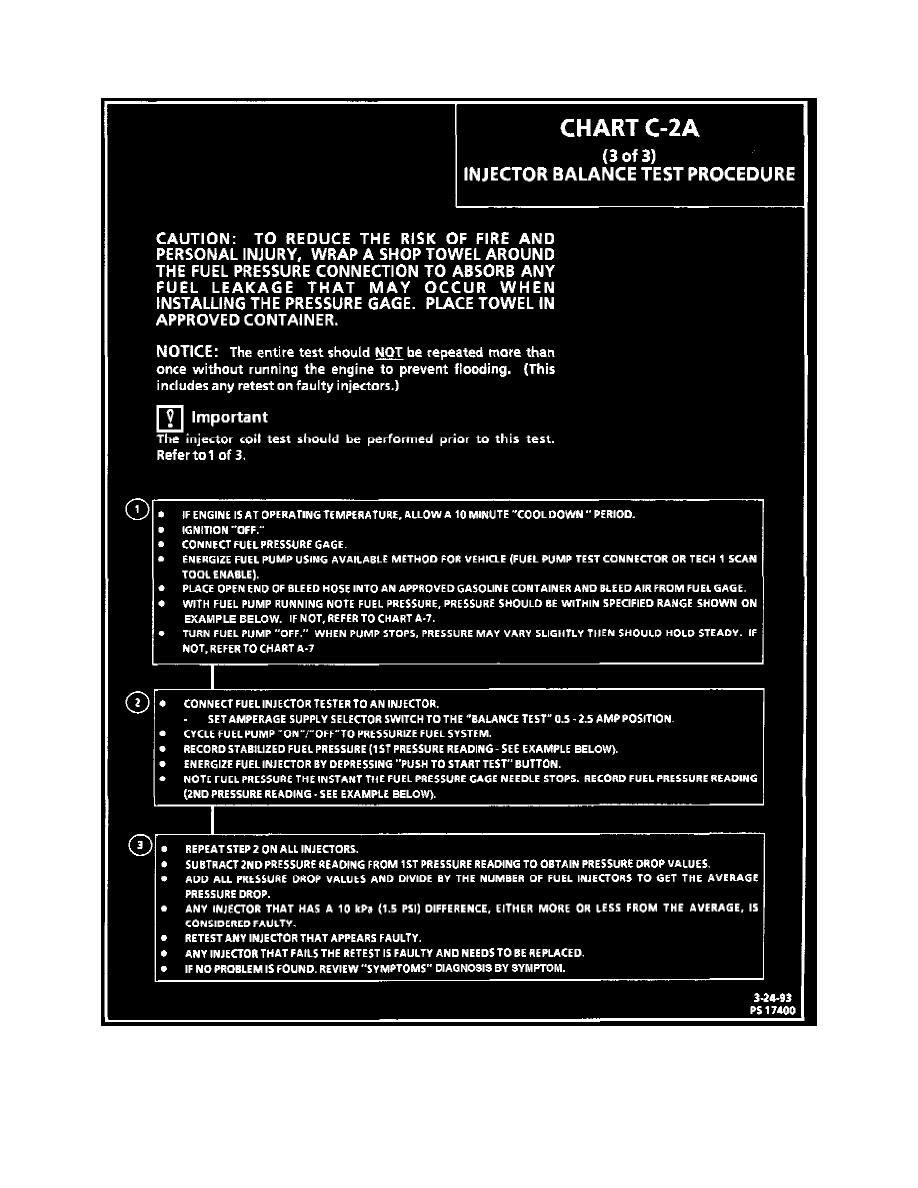

Chart C-2A (3 Of 3)

Powertrain Management
Fuel Delivery and Air Induction
Fuel Injector / Component Information
Testing and Inspection / Part 1 of 3
Page 3446
