Fuel Return Line|Description and Operation|Page 3491 > < Fuel Return Line|Description and Operation

Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

Page 2
background image

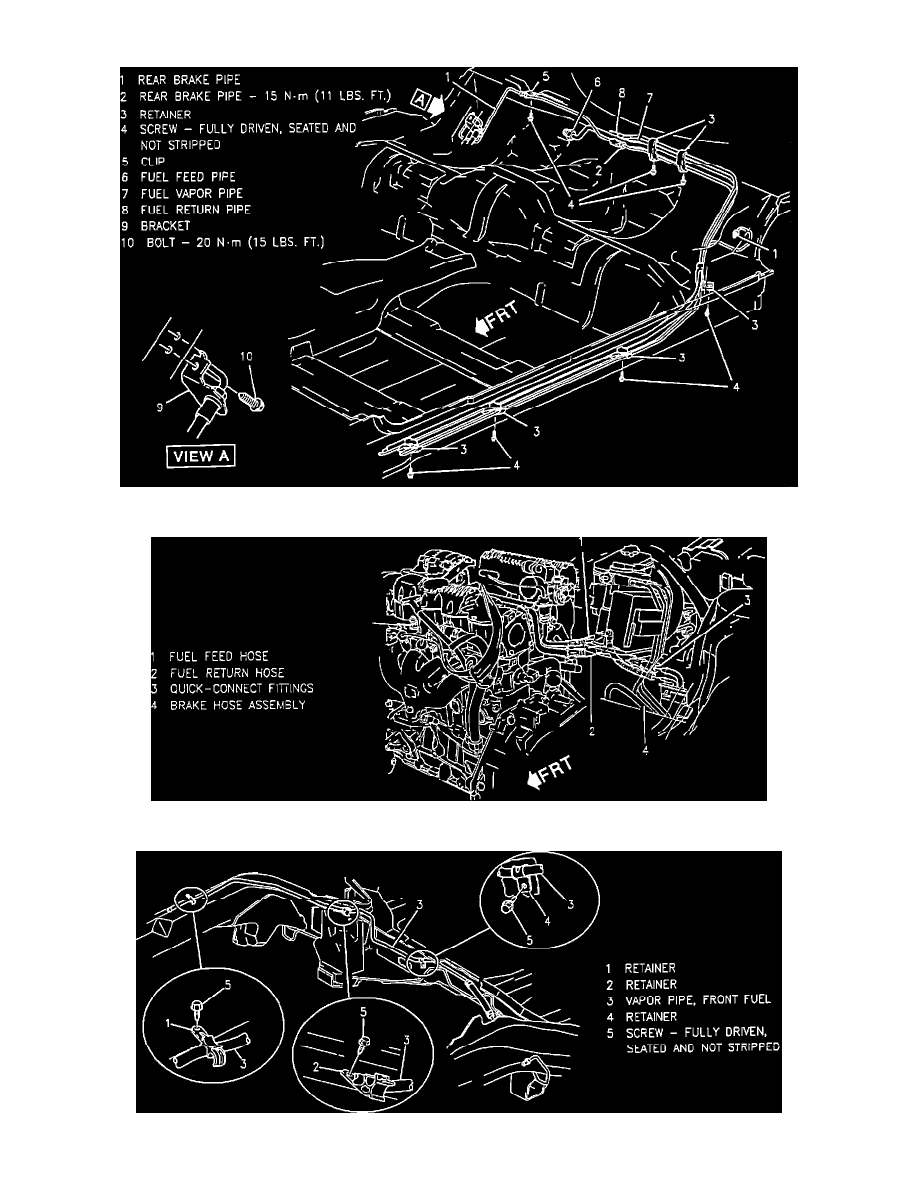

Front Fuel Pipe Routing

Side And Rear Fuel Pipe Routing

Engine Compartment Fuel Pump Routing

Front Fuel Vapor Pipe
