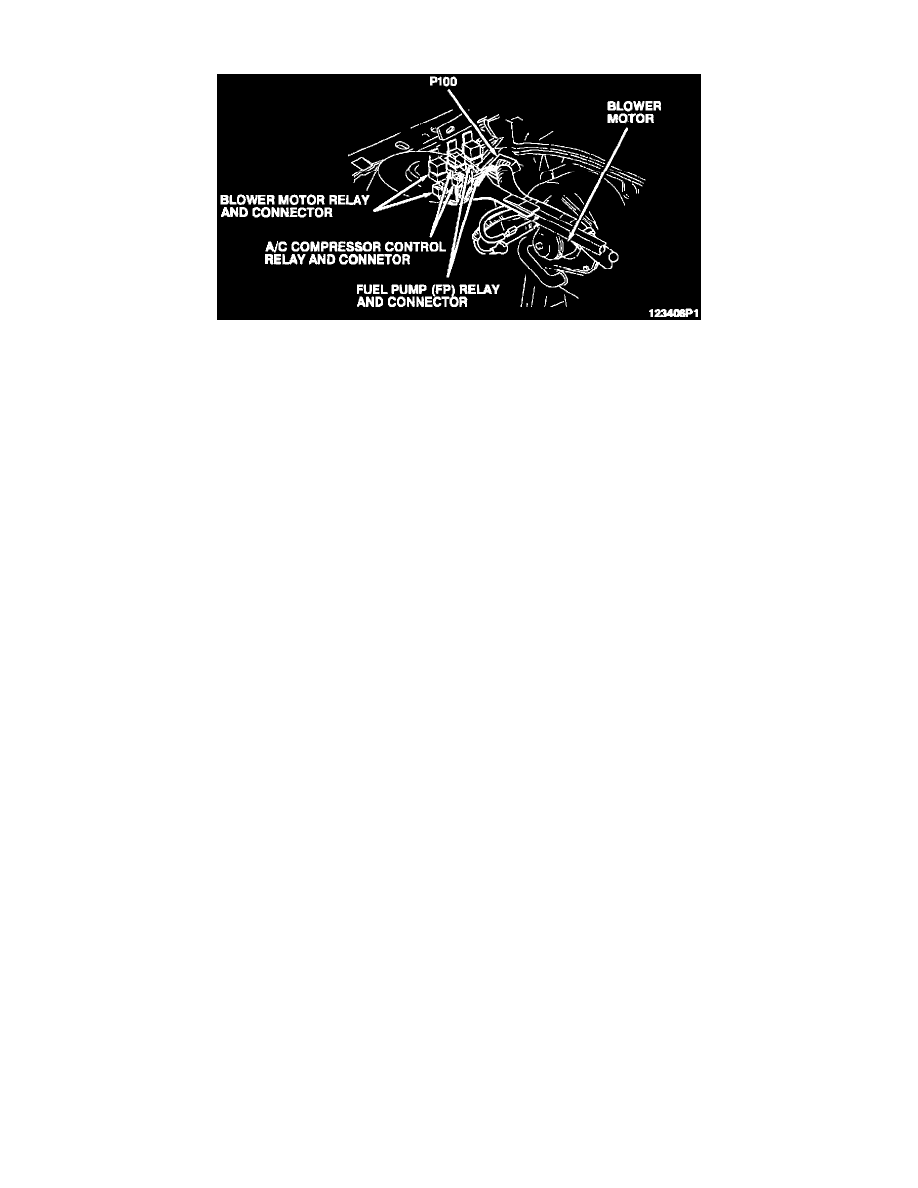

Fuel Pump Relay: Component Locations

RH Rear Of Engine Compartment

Right hand rear of the engine compartment, behind the right hand strut tower.
