Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

Page 1
background image

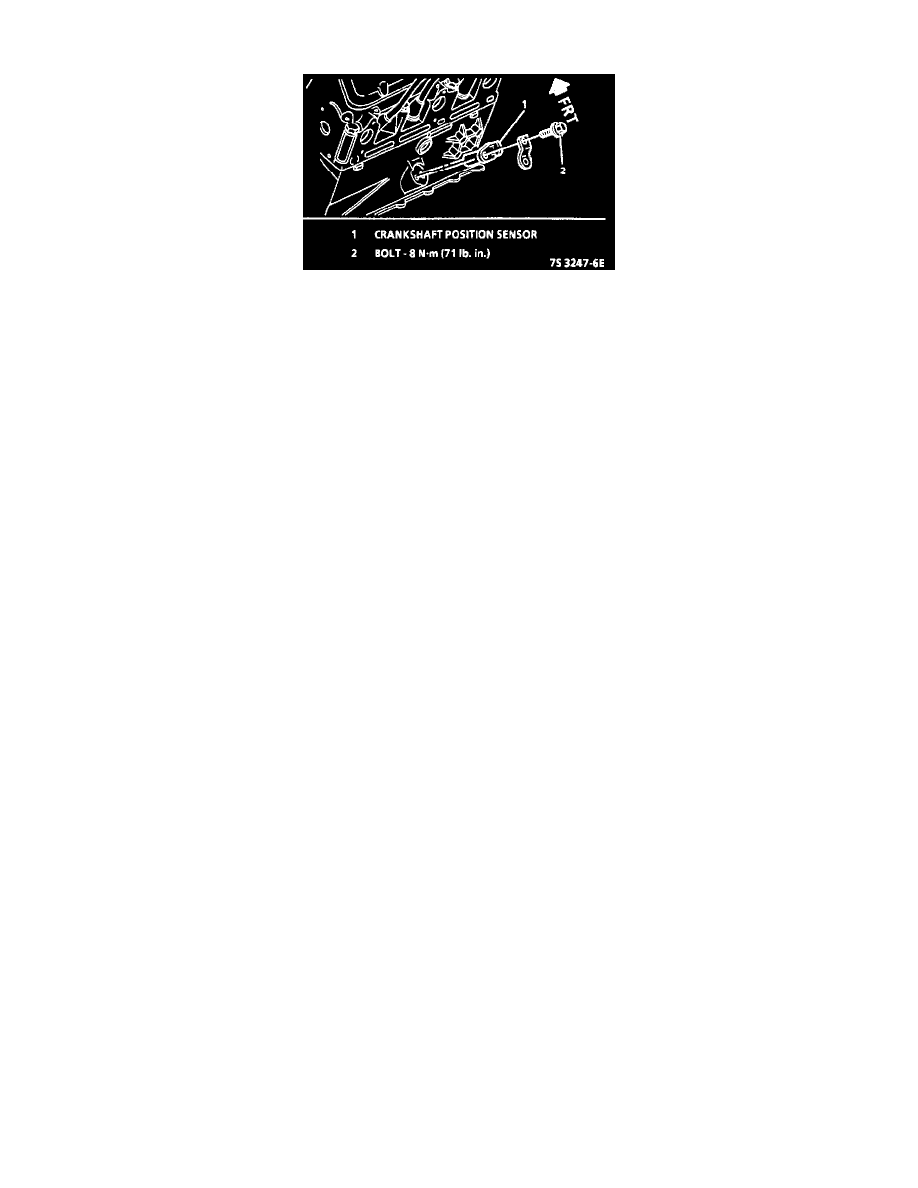

Crankshaft Position Sensor: Locations

Crankshaft Position Sensor

 RH rear of engine, on exhaust manifold
