Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)

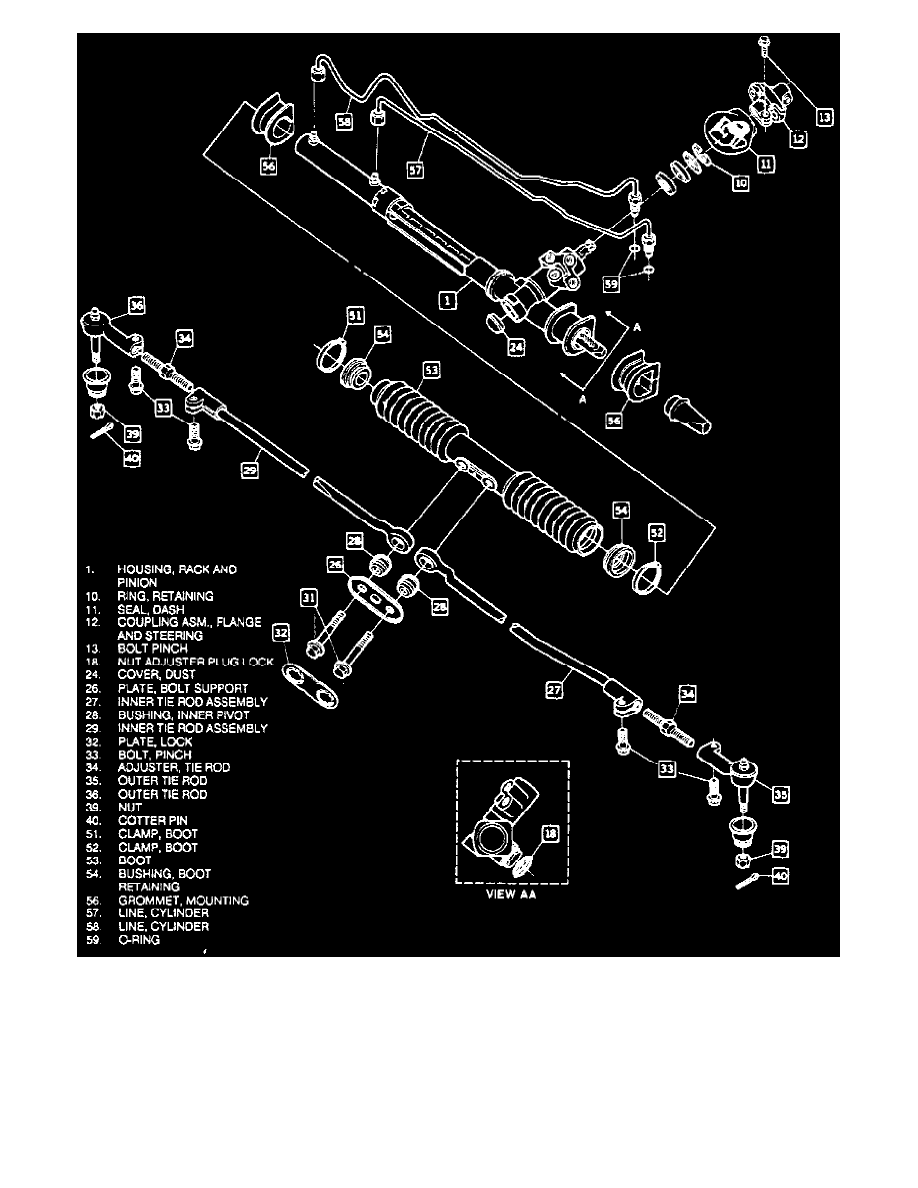

Fig. 24 Exploded View Of Power Rack & Pinion Assembly
1. Cut off righthand mounting grommet and boot clamps, Fig. 24.
2. Slide boot retaining bushing from rack and pinion boot.
3. Slide boot assembly from rack and pinion housing.
4. Remove insert and rack guide assembly as necessary.
5. Slide boot retaining bushing from rack and pinion boot.
6. Slide new boot clamp onto rack and pinion boot.
7. Insert boot retaining bushing into rack and pinion boot.
8. Coat inner lip of boot retaining bushing lightly with suitable grease to facilitate assembly, then slide assembly onto housing assembly.
