Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)
Refer to Fig. 27 for replacement procedure.
Flange and Steering Coupling Assembly

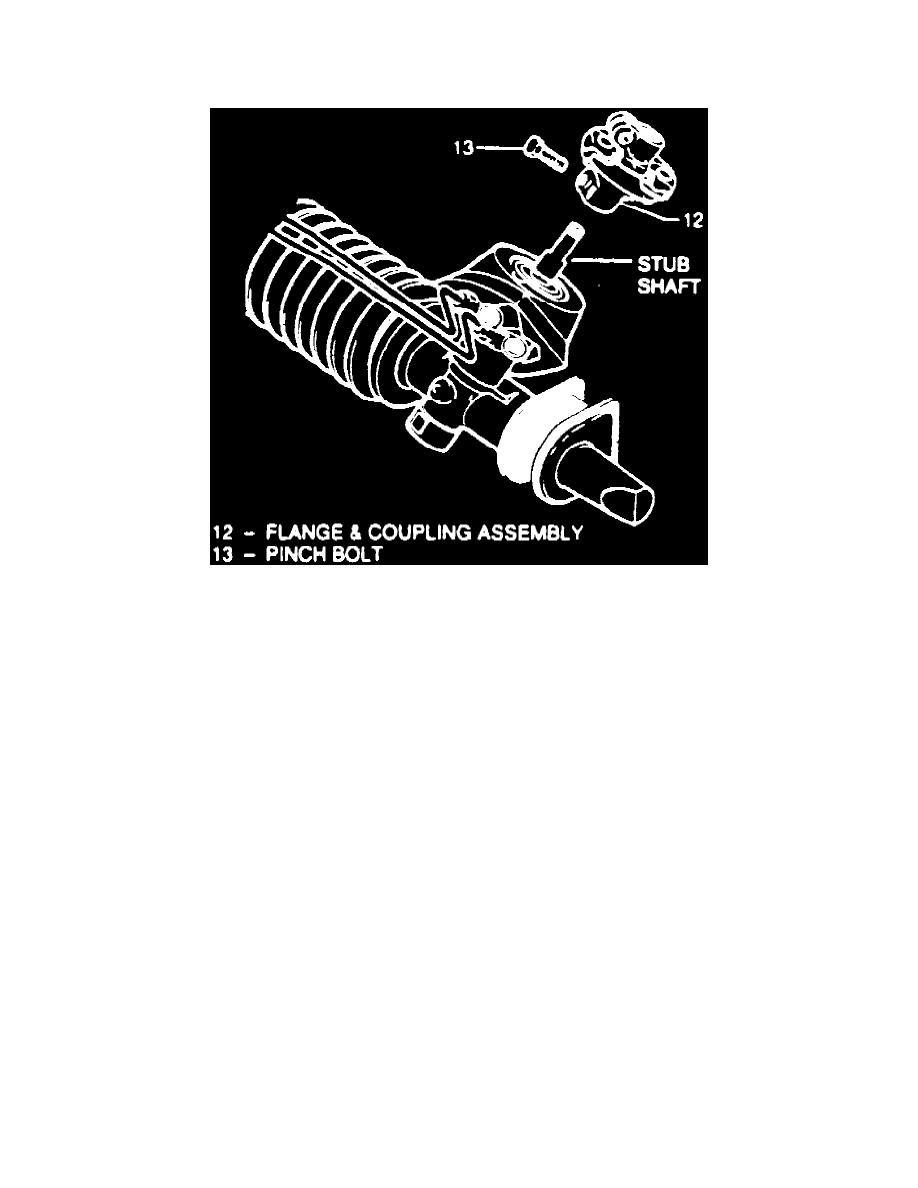

Fig. 28 Flange & Steering Coupling Assembly
1. Remove rack and pinion assembly from vehicle.
2. Remove pinch bolt from flange and steering coupling assembly, then the coupling, Fig. 28
3. Reverse procedure to install. Torque pinch bolt to 29 ft. lbs.
Hydraulic Cylinder Lines
