Cavalier/Z24 V6-191 3.1L VIN T MFI (1994)
Valve Body: Service and Repair
Valve Body Cover
VALVE BODY COVER

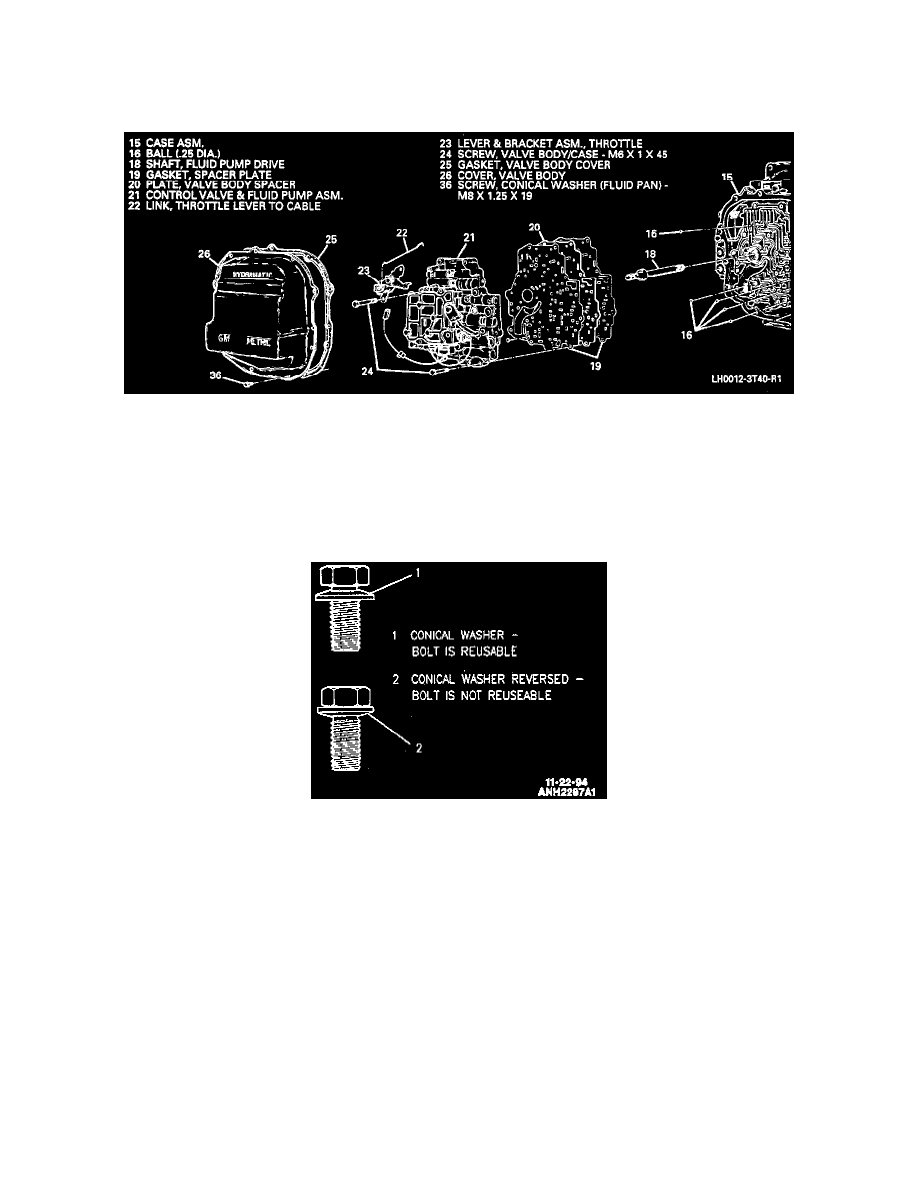

Side Cover And Control Valve View
REMOVE OR DISCONNECT
1. Raise vehicle and suitably support.
2. Drain oil.
3. Left front tire and wheel assembly.
4. Left splash shield.
5. Valve body cover to transaxle bolts.
INSPECT
^
Bolts
INSTALL OR CONNECT
1. Valve body cover with a new gasket and bolts.
