Drive Belt: Testing and Inspection (page 3 of 3)
- Make
- Chevrolet
- Model
- Cobalt
- Engine
- L4-2.2L
- Year
- 2008
- Section
- Drive Belt
MaintenanceTesting and Inspection · page 3 of 3

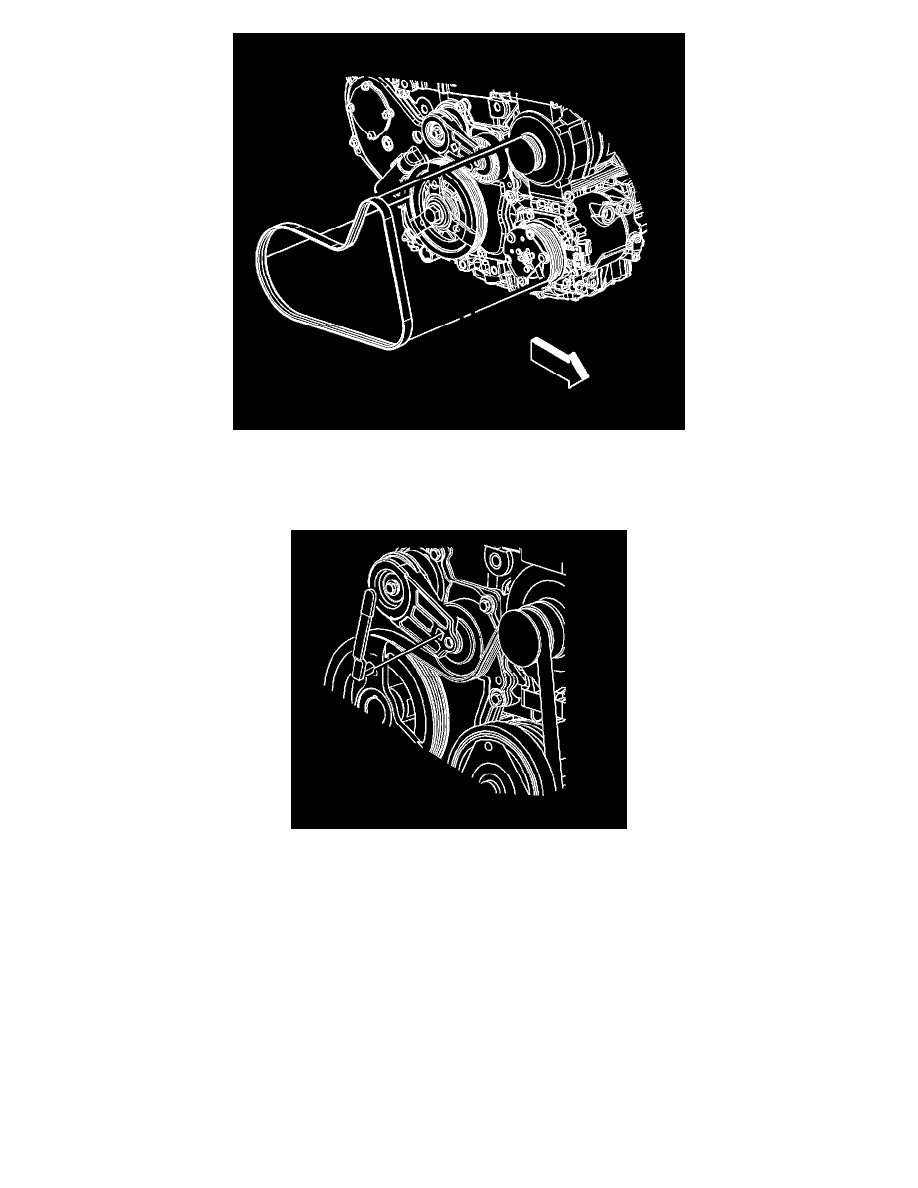

1. Install and position the drive belt around all of the pulleys except for the drive belt tensioner.
2. Install the J 44811 to the drive belt tensioner.
3. Using the J 44811 , rotate the tensioner counterclockwise.
4. Position the drive belt under the tensioner pulley.
5. Using the J 44811 , rotate the tensioner clockwise in order to seat the tensioner pulley onto the drive belt.
6. Install the engine splash shield. Refer to Engine Splash Shield Replacement .
