Fluid Pressure Sensor/Switch: Diagrams

Automatic Transmission Internal Connector End Views

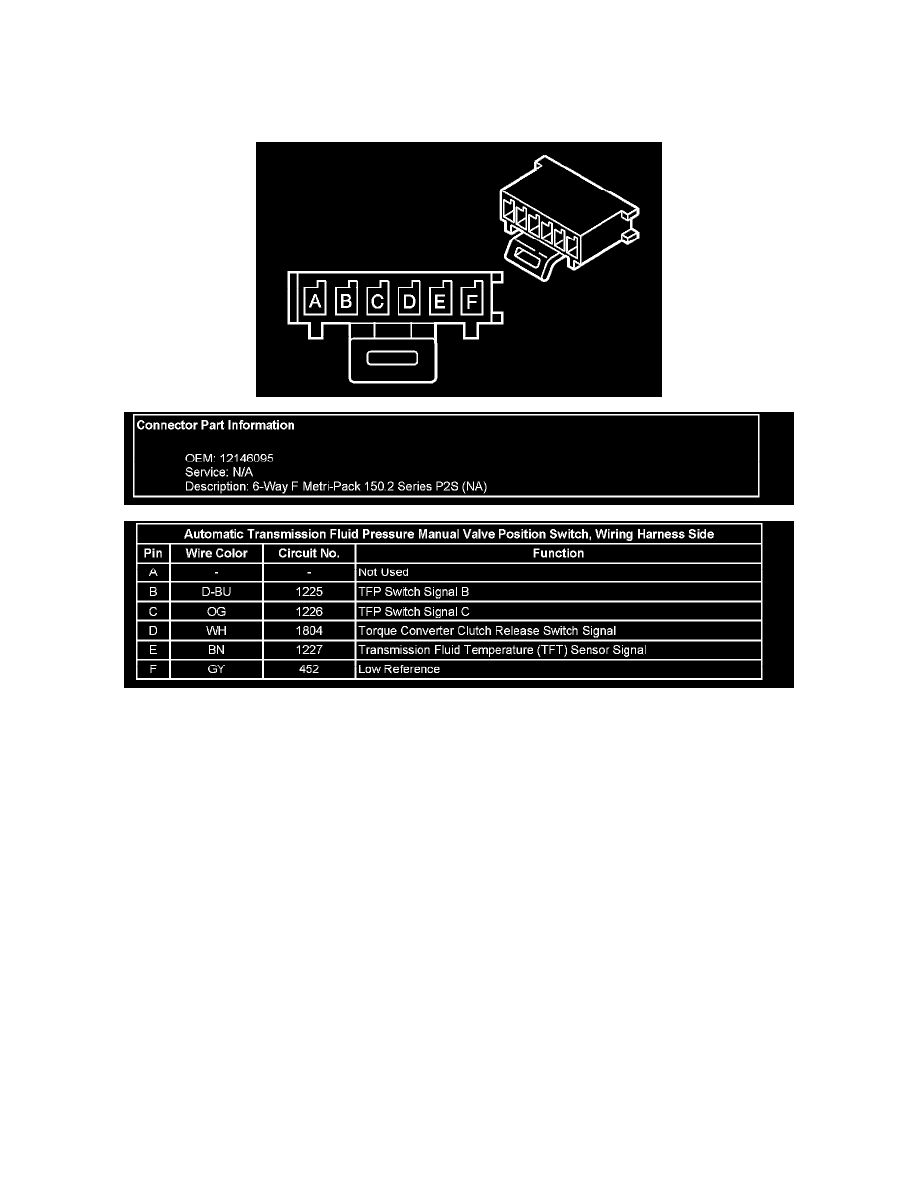

Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side

Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side
