Colorado 2WD L5-3.7L (2007)

Page 1
background image

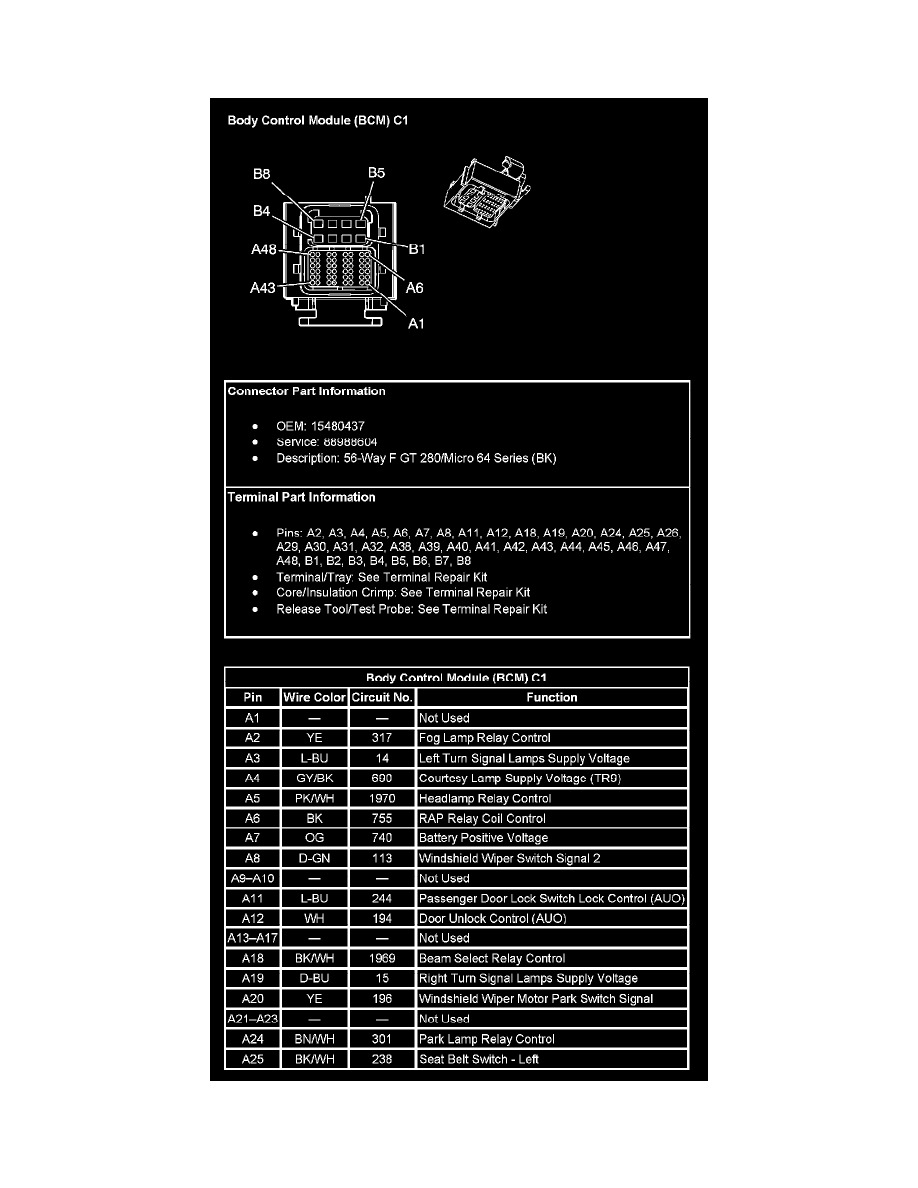

Body Control Module: Diagrams
Body Control Module (BCM) C1

Body Control Module (BCM) C1 (Part 1)
