Air Injection Vacuum Control Solenoid Valve: Diagrams

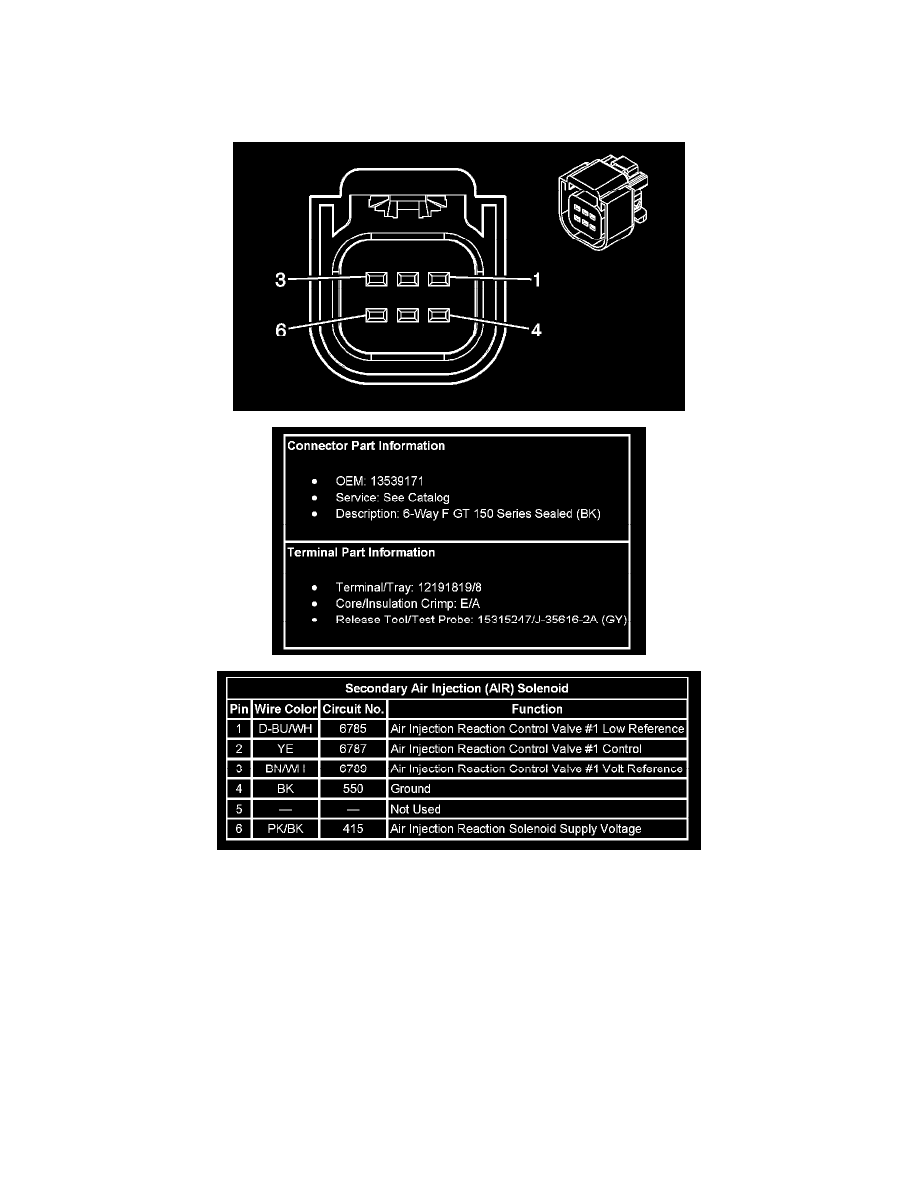

Engine Controls Connector End Views

Secondary Air Injection (AIR) Solenoid
