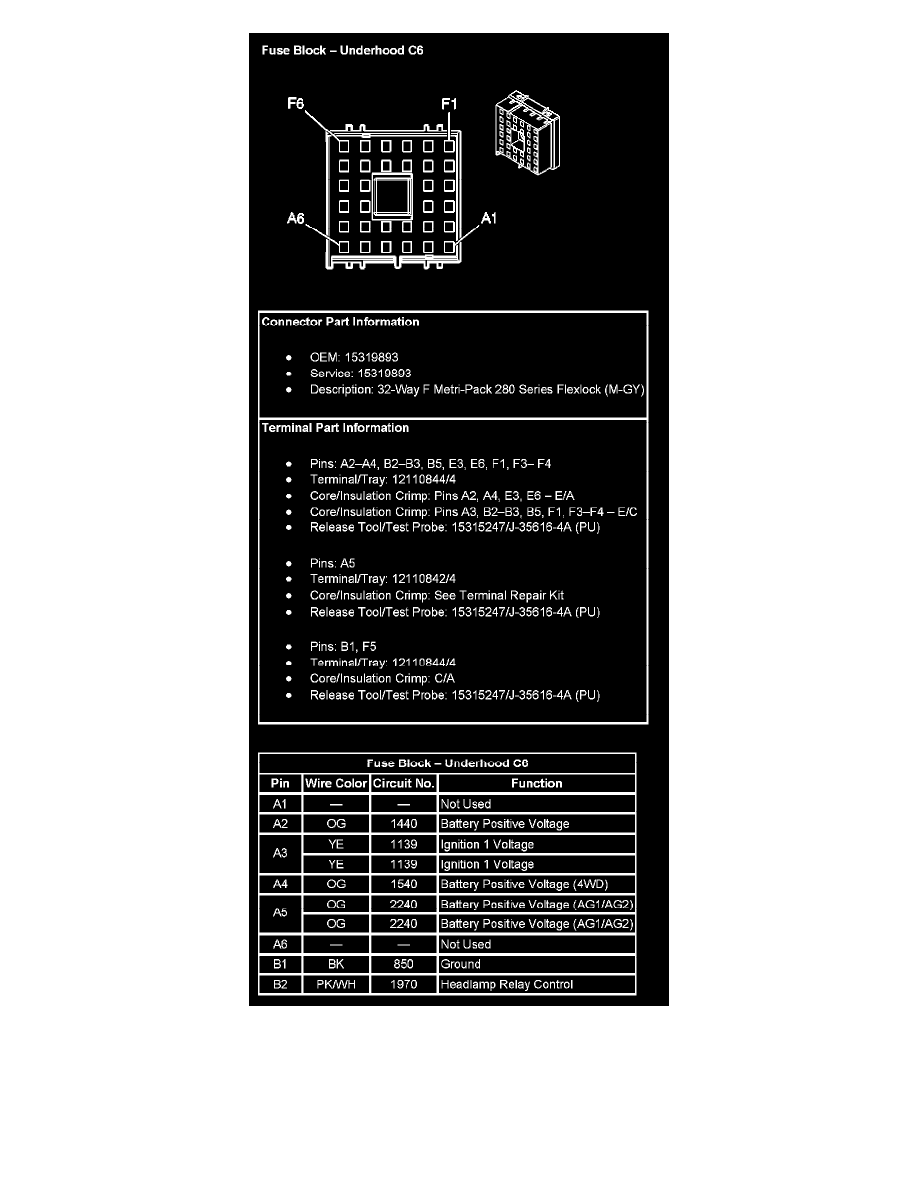

Fuse Block - Underhood C6 (Pin A1 To B2)

Starting and Charging
Power and Ground Distribution
Fuse Block / Component Information
Diagrams / Diagram Information and Instructions
