Colorado 4WD L4-2.8L VIN 8 (2004)

  • Engine, Cooling and Exhaust
  • Engine
  • Actuators and Solenoids - Engine
  • Variable Valve Timing Actuator
  • Component Information
  • Diagrams

Page 1
background image

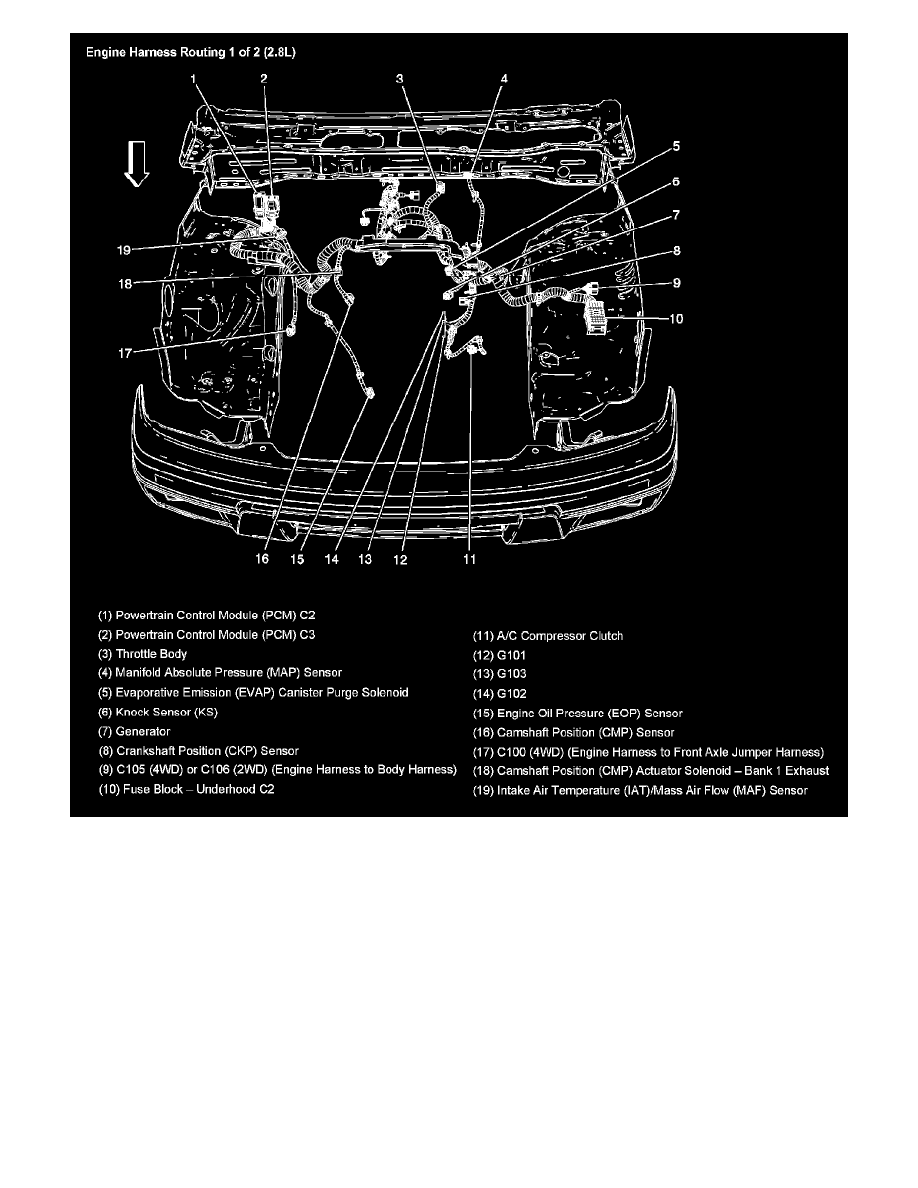

Engine Harness Routing Part 1

  • Engine, Cooling and Exhaust
  • Engine
  • Actuators and Solenoids - Engine
  • Variable Valve Timing Actuator
  • Component Information
  • Diagrams
