Blower Motor Resistor: Locations

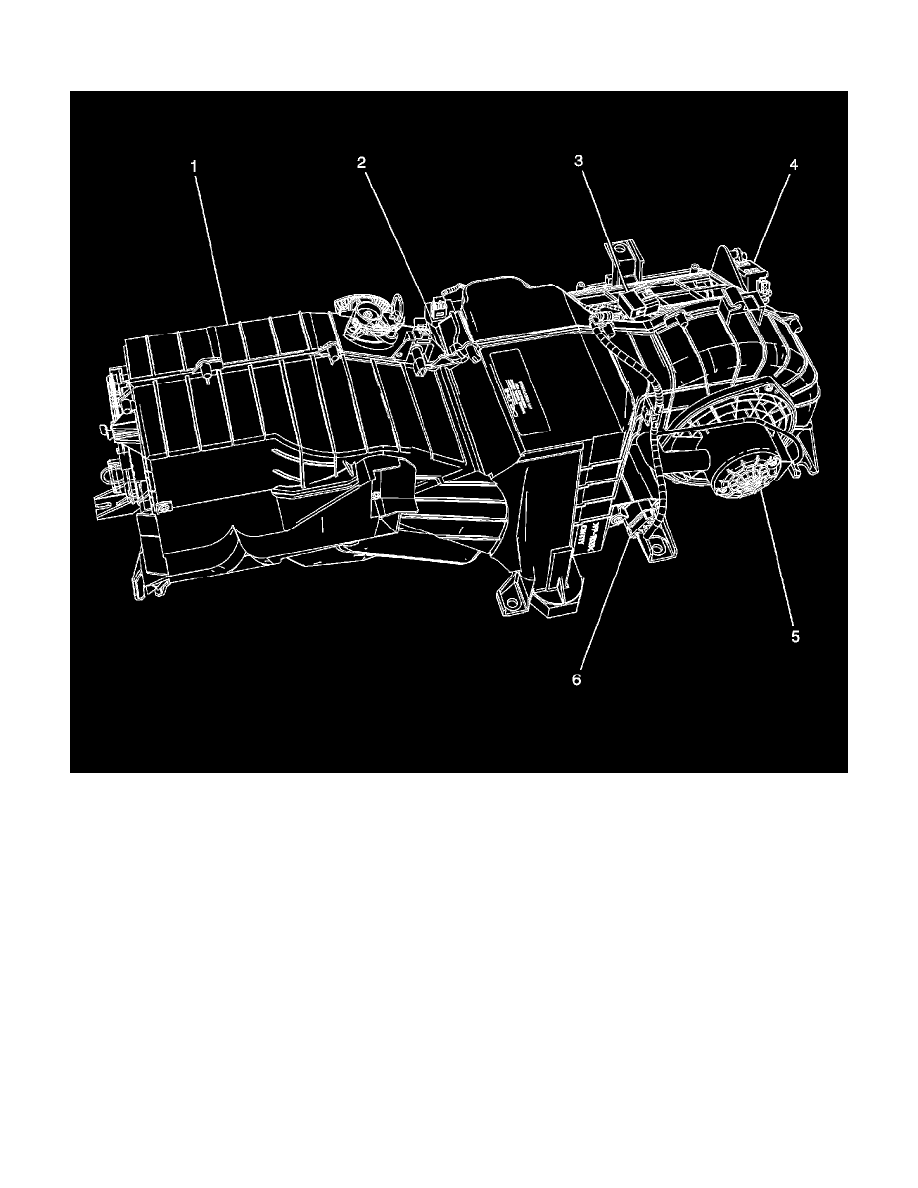

Behind the I/P Components

1 - HVAC Module Assembly
2 - Evaporator Temperature Sensor (C60)
3 - X203
4 - Recirculation Actuator (C60)
5 - Blower Motor
6 - Blower Motor Resistor Assembly

Behind the Left Side of the I/P Components
