Cruze L4-1.4L Turbo (2011)
Oil Filter: Service and Repair
Engine Oil and Oil Filter Replacement
Removal Procedure
1. Open hood.
2. Place a drain pan below the vehicle.

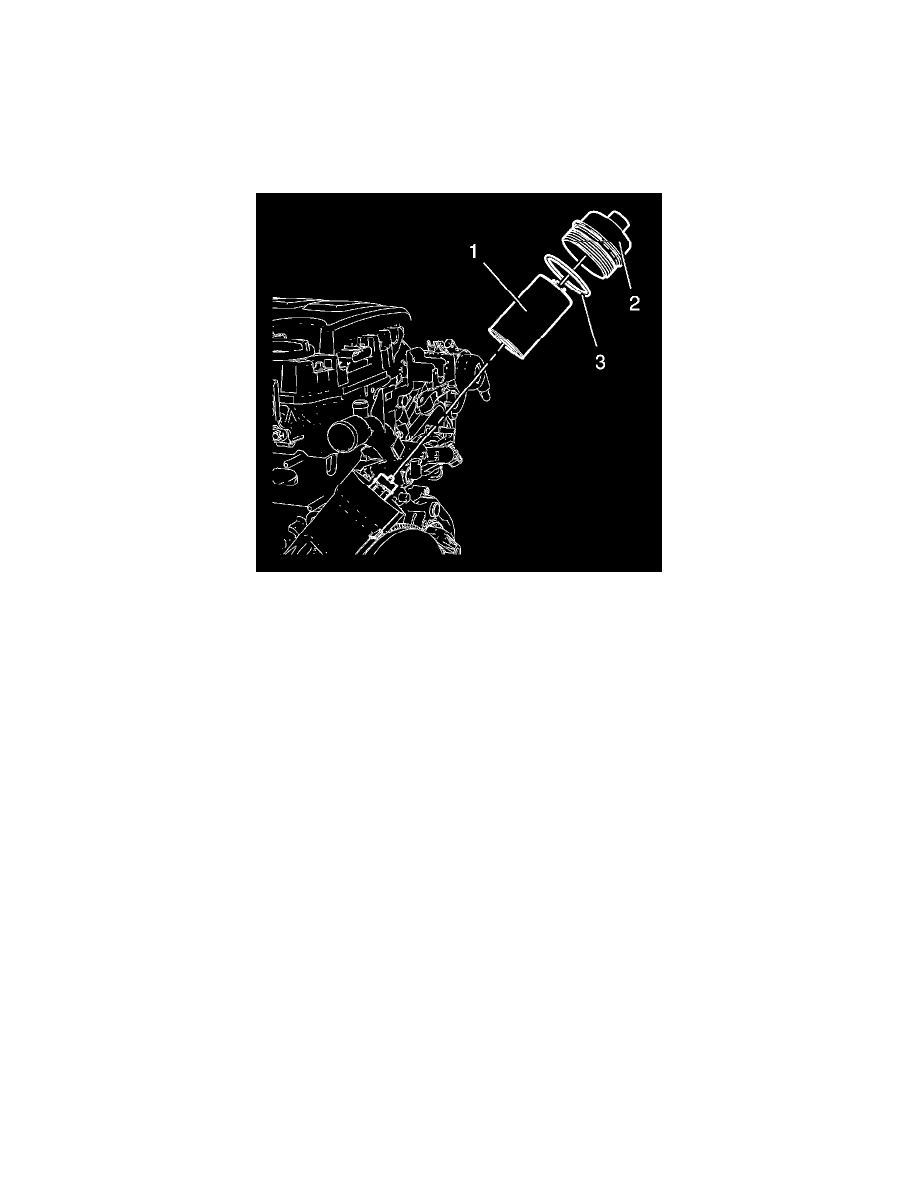

3. Remove the engine oil filter cap (2) in compound with the engine oil filter cap seal ring (3) and the oil filter element (1).
4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance/Vehicle Lifting/Service and Repair).
5. Remove the oil pan drain plug and allow the oil to drain into the drain pan.
Installation Procedure
1. Clean the oil pan drain plug thread in the oil pan.
2. Install a NEW seal ring to the oil pan drain plug.
Caution: Refer to Fastener Caution (See: Service Precautions/Vehicle Damage Warnings/Fastener Caution).
3. Install the oil pan drain plug and tighten to 14 Nm (124 lb in).
4. Lower the vehicle.
