Air Bag Deactivation Indicator: Diagrams

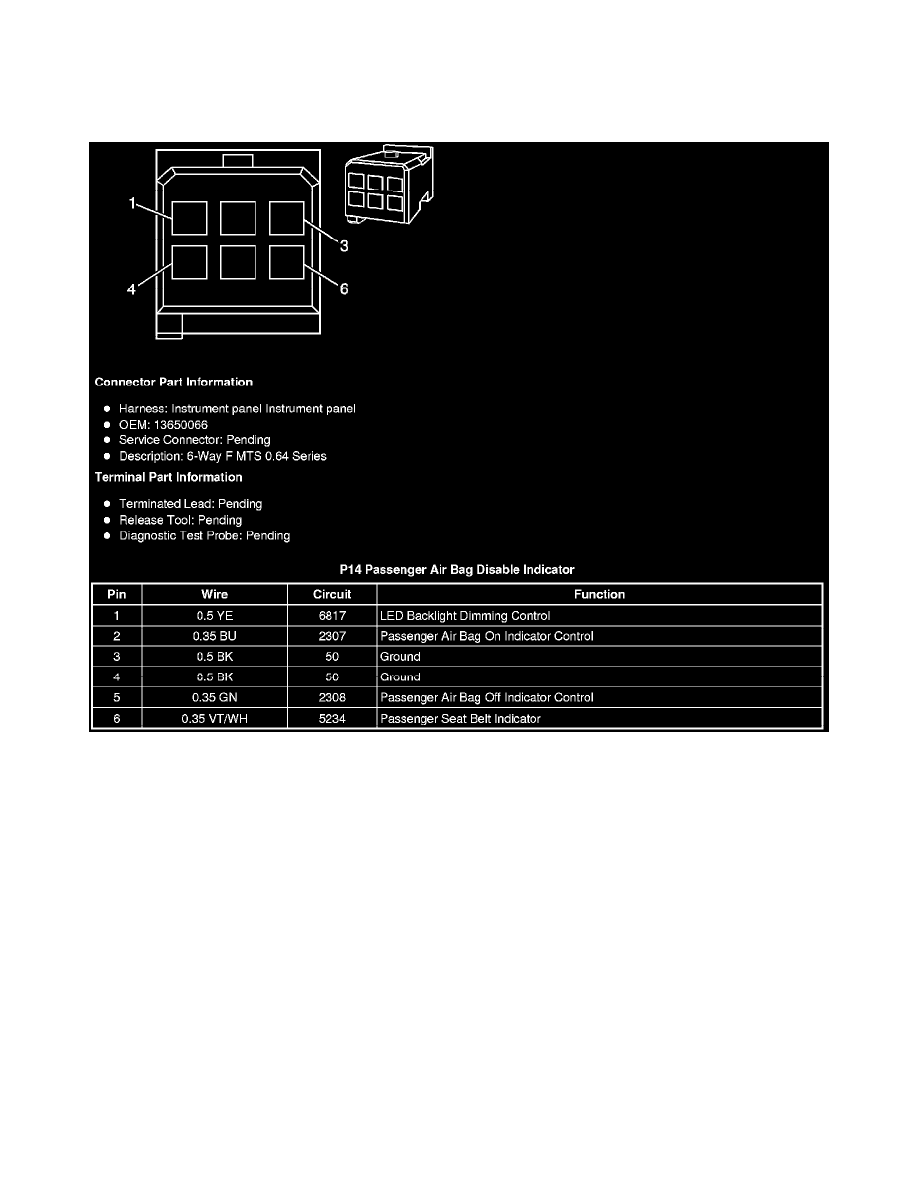

Component Connector End Views

P14 Passenger Air Bag Disable Indicator

Instrument Panel, Gauges and Warning Indicators
Air Bag Deactivation Indicator
Component Information
Diagrams
