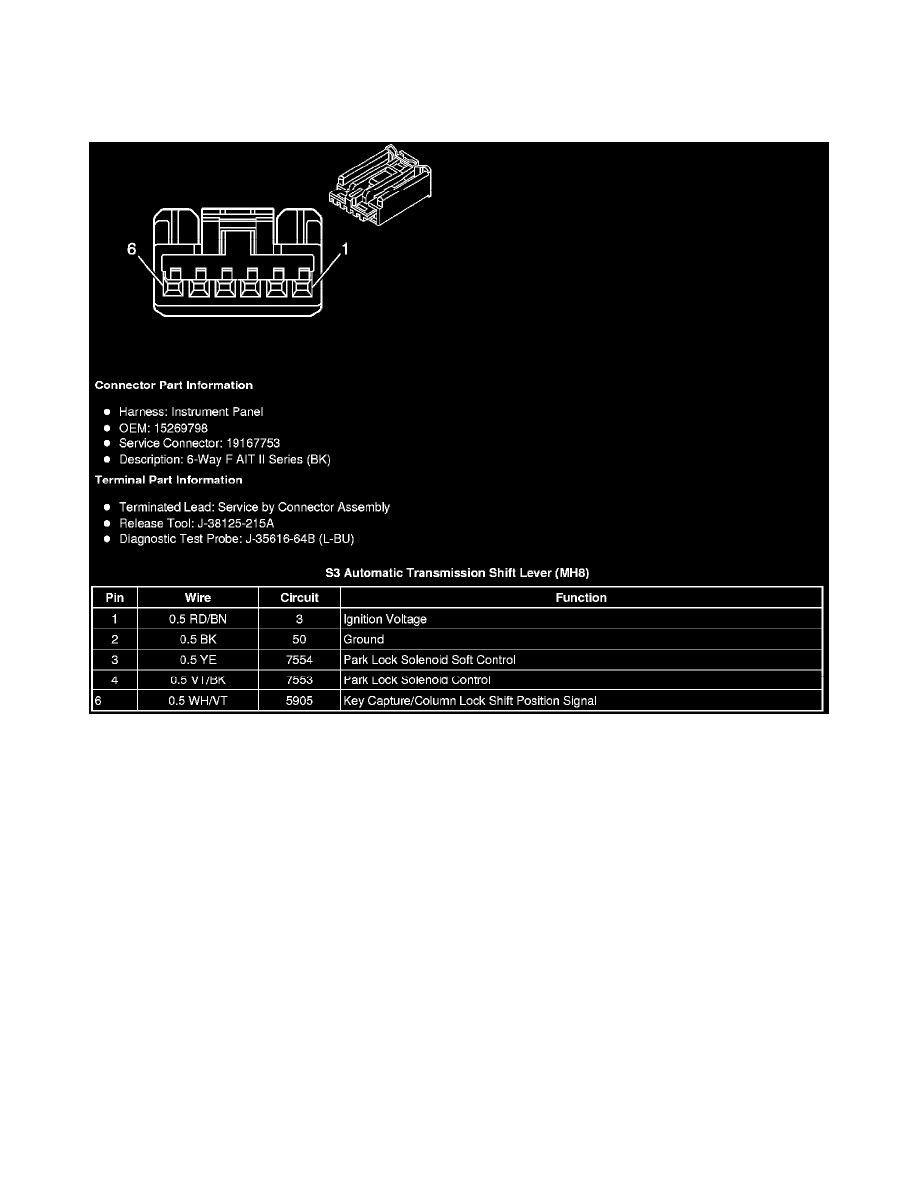

Shift Interlock Solenoid: Diagrams

Component Connector End Views

S3 Automatic Transmission Shift Lever (MH8)
