Control Assembly: Diagrams
HVAC Control Assembly

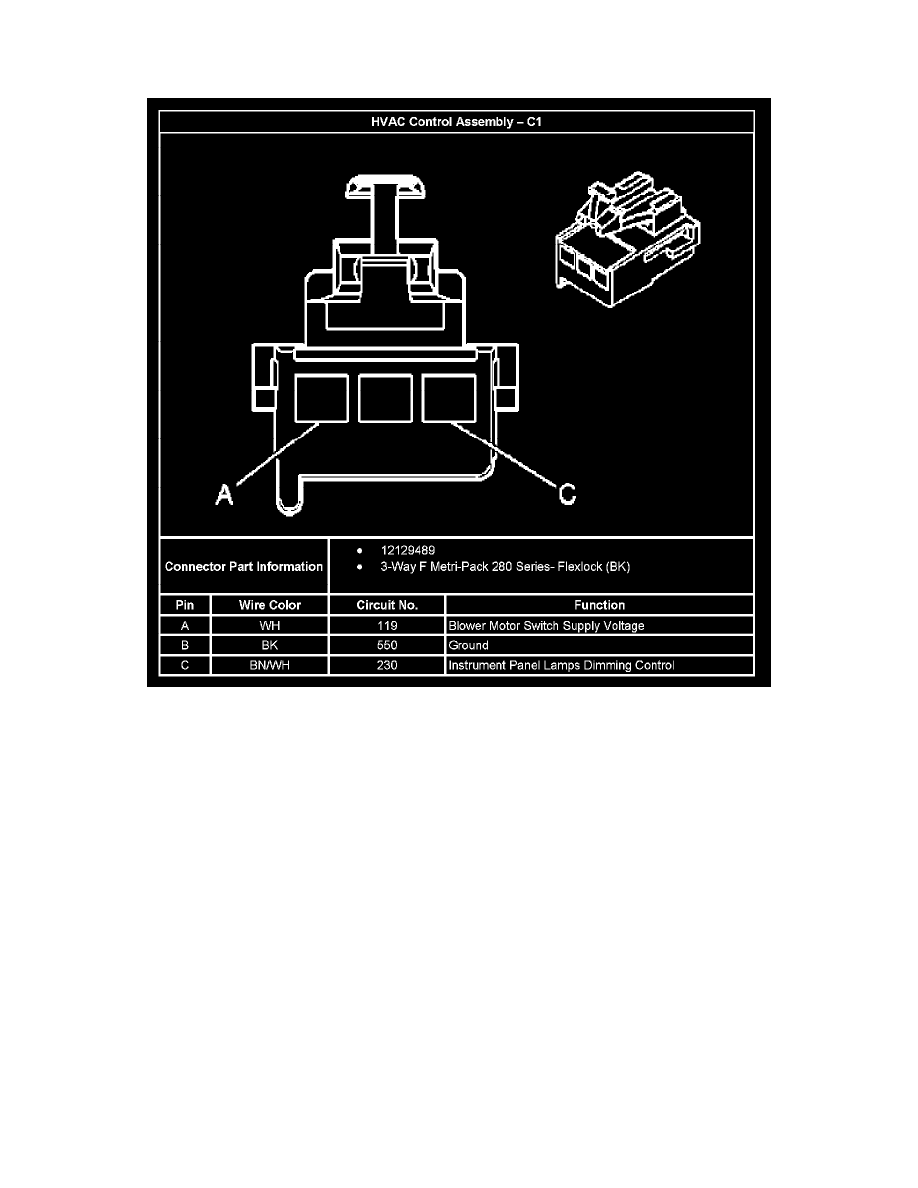

HVAC Control Assembly - C1

Heating and Air Conditioning
Control Assembly, HVAC
Component Information
Diagrams
HVAC Control Assembly
