Page 1

background image

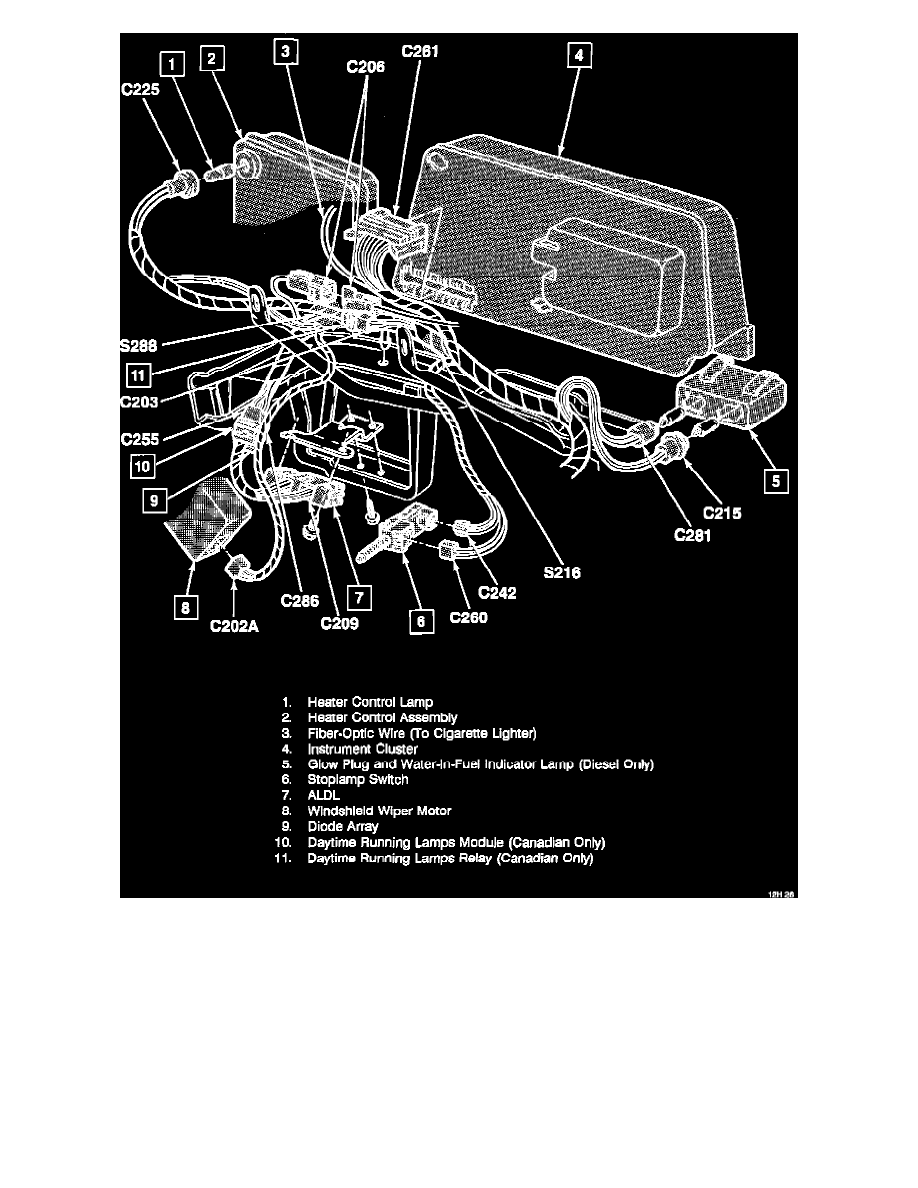

I/P Wiring And Brake Switch

Heating and Air Conditioning
Control Assembly, HVAC
Component Information
Locations
