Fuel Module: Service and Repair

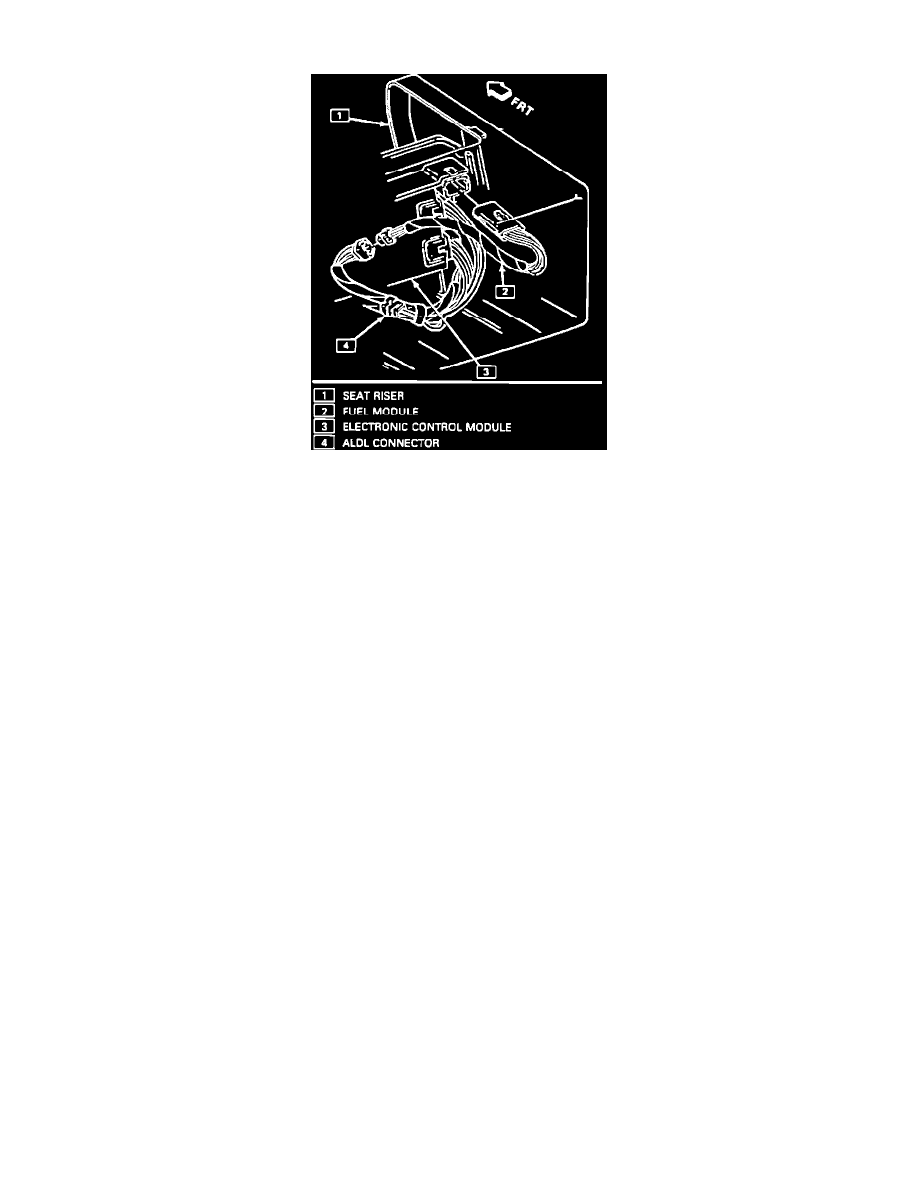

Fuel Module

REMOVE/DISCONNECT

-

Fuel module housing

-

open housing cover

-

Fuel module board

INSTALL/CONNECT

-

Fuel module board

-

Close cover

-

Fuel module housing
