G 30 Van V6-262 4.3L VIN Z (1992)

Page 1
background image

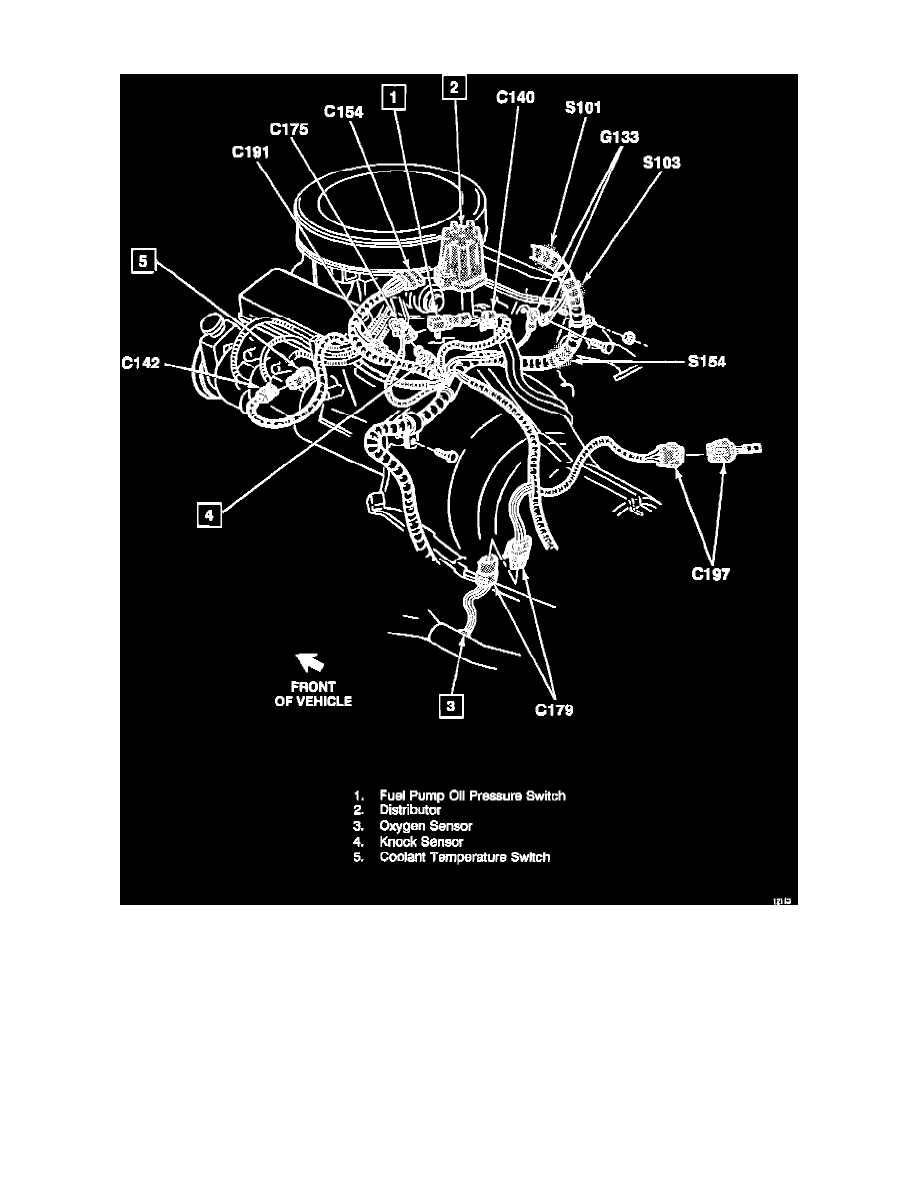

Oil Pressure Switch (For Fuel Pump): Locations

Engine Wiring, LH Side
