Chevrolet Workshop Service and Repair Manuals > G 30 Van V6-262 4.3L VIN Z (1992) > Relays and Modules | Relays and Modules - Powertrain Management | Relays and Modules - Computers and Control Systems | Engine Control Module | Component Information | Diagrams | Harness Connector | Page 152

Harness Connector|Page 153 > < Harness Connector

Page 2

background image

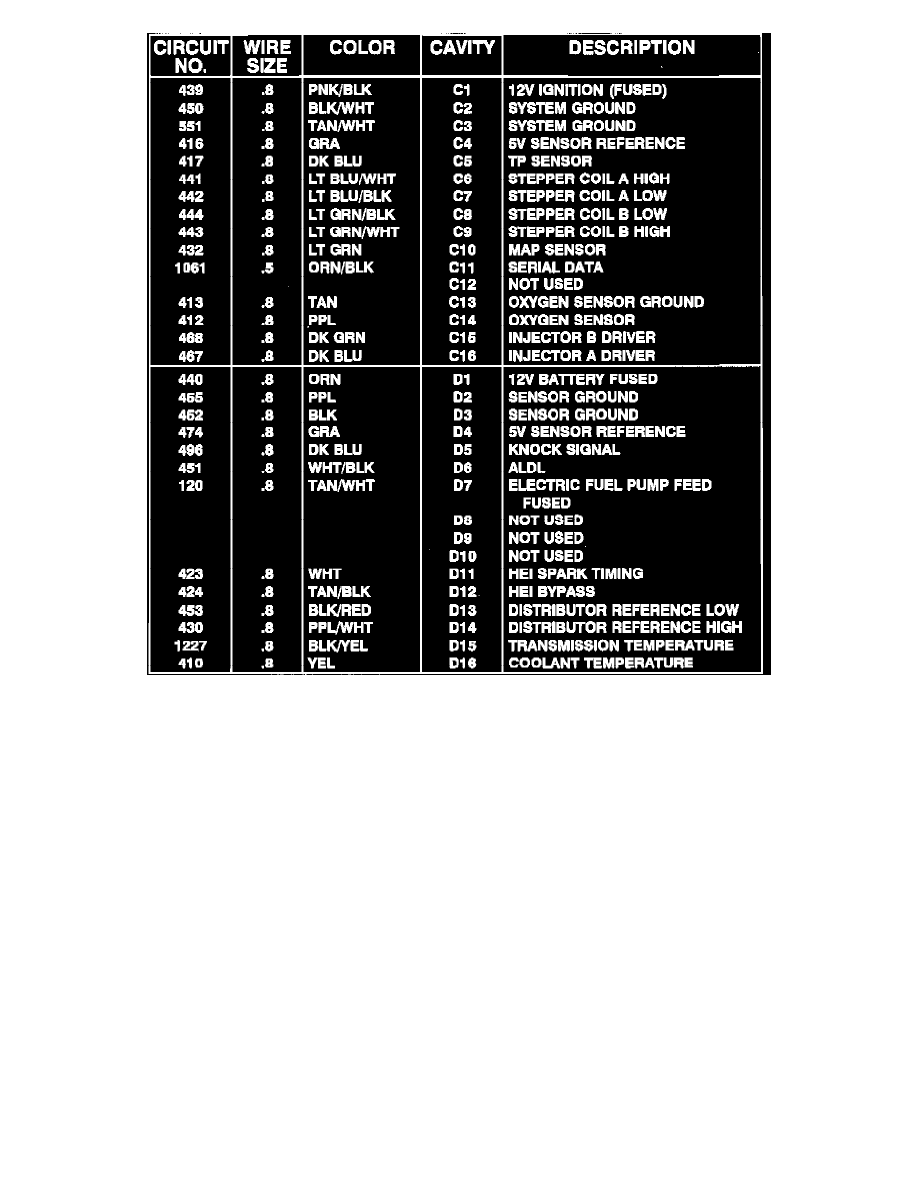

Powertrain Control Module (PCM) Connector

Relays and Modules
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Engine Control Module / Component Information
Diagrams / Harness Connector
Page 152

Harness Connector|Page 153 > < Harness Connector
