G 30 Van V6-262 4.3L VIN Z (1992)

Page 1
background image

Fluid Pressure Sensor/Switch: Testing and Inspection

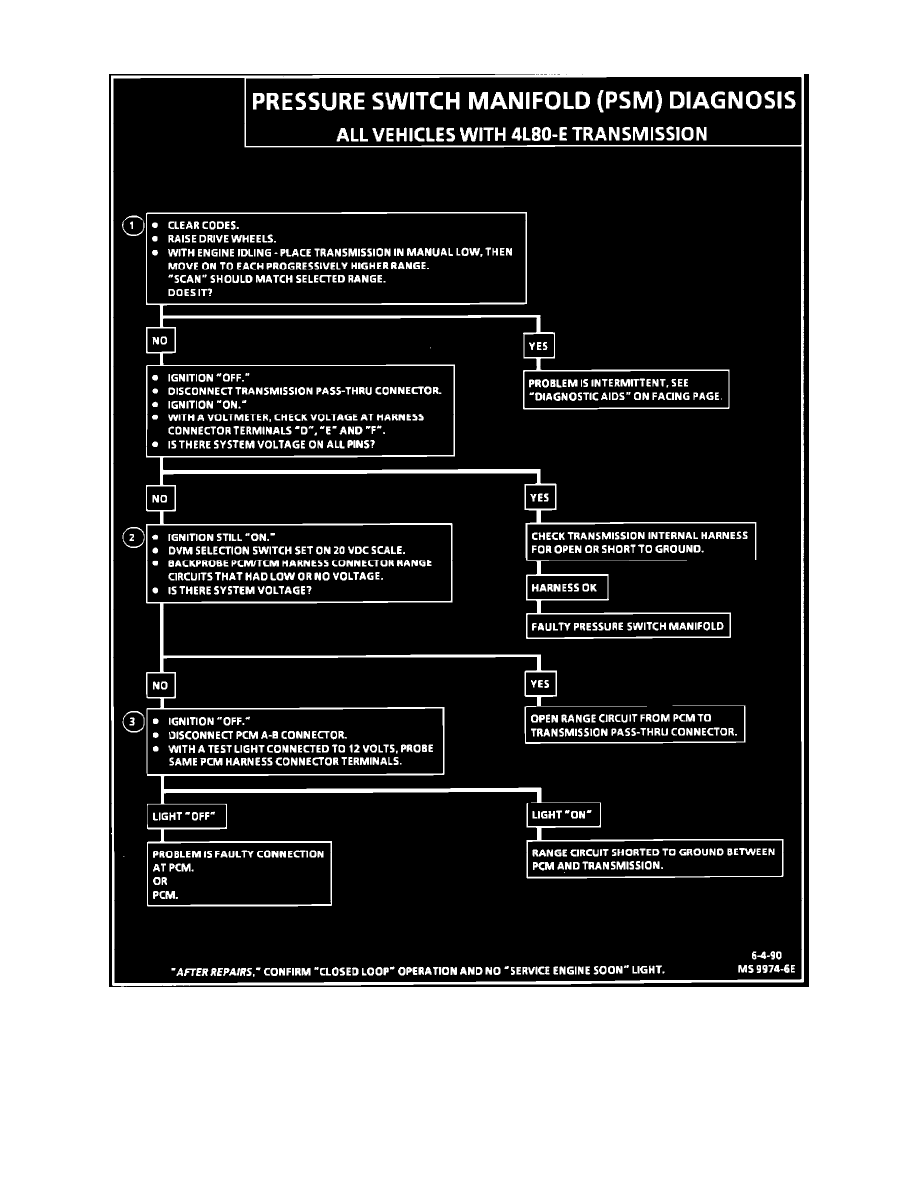

Pressure Switch Manifold Circuit Diagnosis
