HHR L4-2.4L (2010)
Camshaft: Service and Repair
Intake Camshaft and Valve Lifter Replacement
Intake Camshaft and Valve Lifter Replacement
Removal Procedure
1. Remove the intake camshaft position actuator. Refer to Camshaft Position Intake Actuator Replacement (See: Camshaft Position Intake Actuator
Replacement).
Note: Remove each bolt on each cap one turn at a time until there is no spring tension pushing on the camshaft.

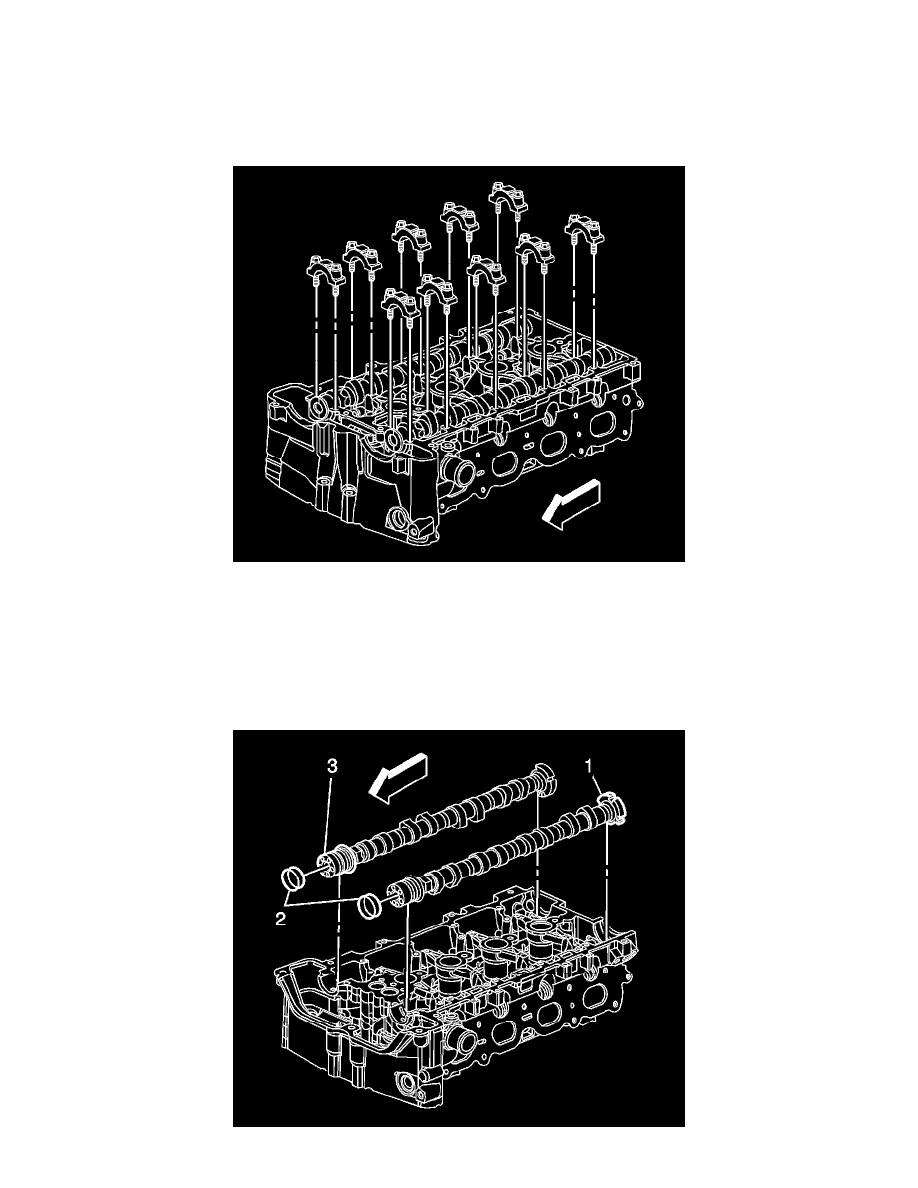

2. Mark the bearing caps to ensure they are installed in the original position.
3. Remove the bearing cap bolts.
4. Remove the bearing caps.
