HHR L4-2.4L (2010)
Flex Plate: Service and Repair
Engine Flywheel Replacement
Special Tools
*
J 38122-A Crankshaft Balancer Holder
*
J 45059 Angle Meter
Removal Procedure
1. If equipped with a automatic transaxle, remove the transaxle. Refer to Transmission Replacement ().
2. If equipped with a manual transaxle, remove the clutch. Refer to Clutch Pressure and Driven Plate Replacement (See: Clutch/Service and Repair
).

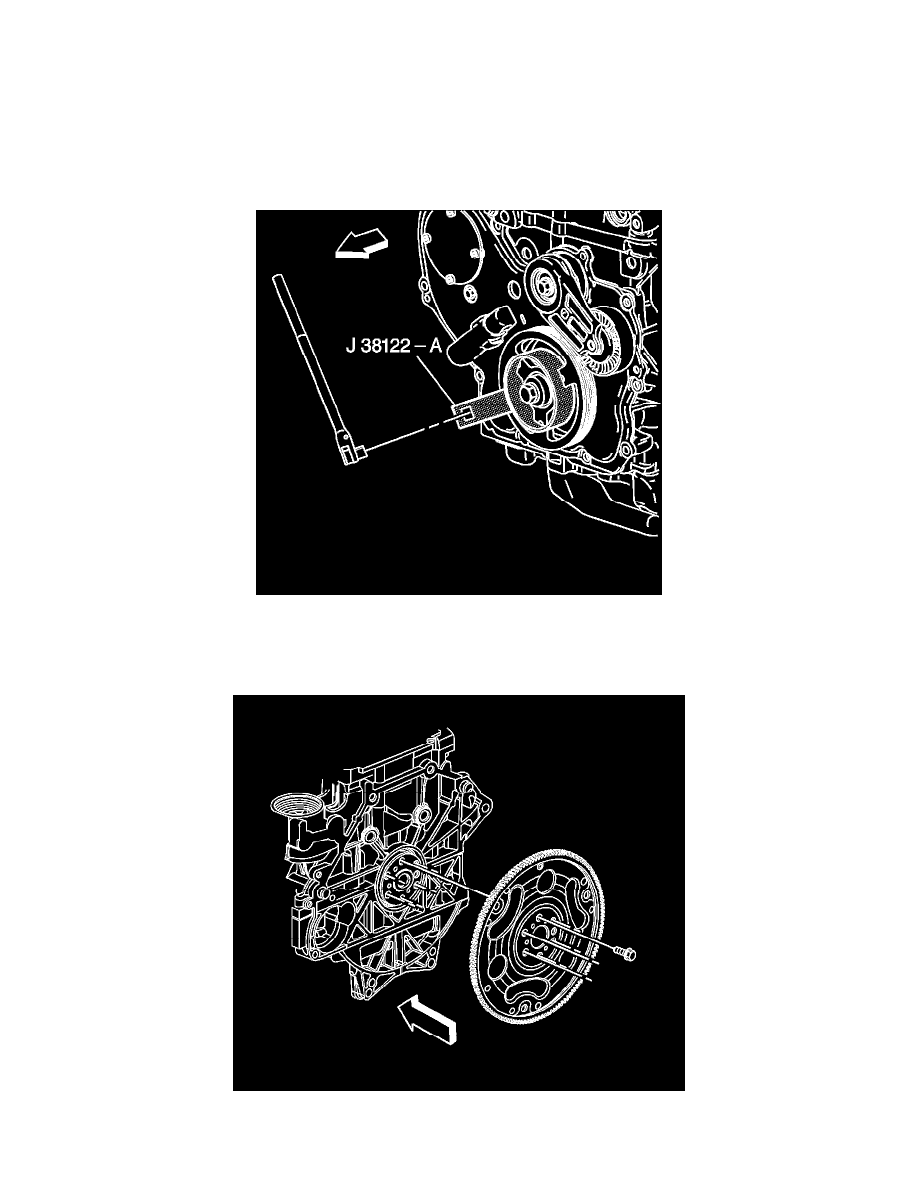

3. Using the J 38122-A , hold the crankshaft balancer.
Note: It may be necessary to remove the chamfer (bevel) from the edge of an 18 mm socket in order to get full engagement on the thin-headed
flywheel bolts.
