Center Mounted Brake Lamp: Diagrams

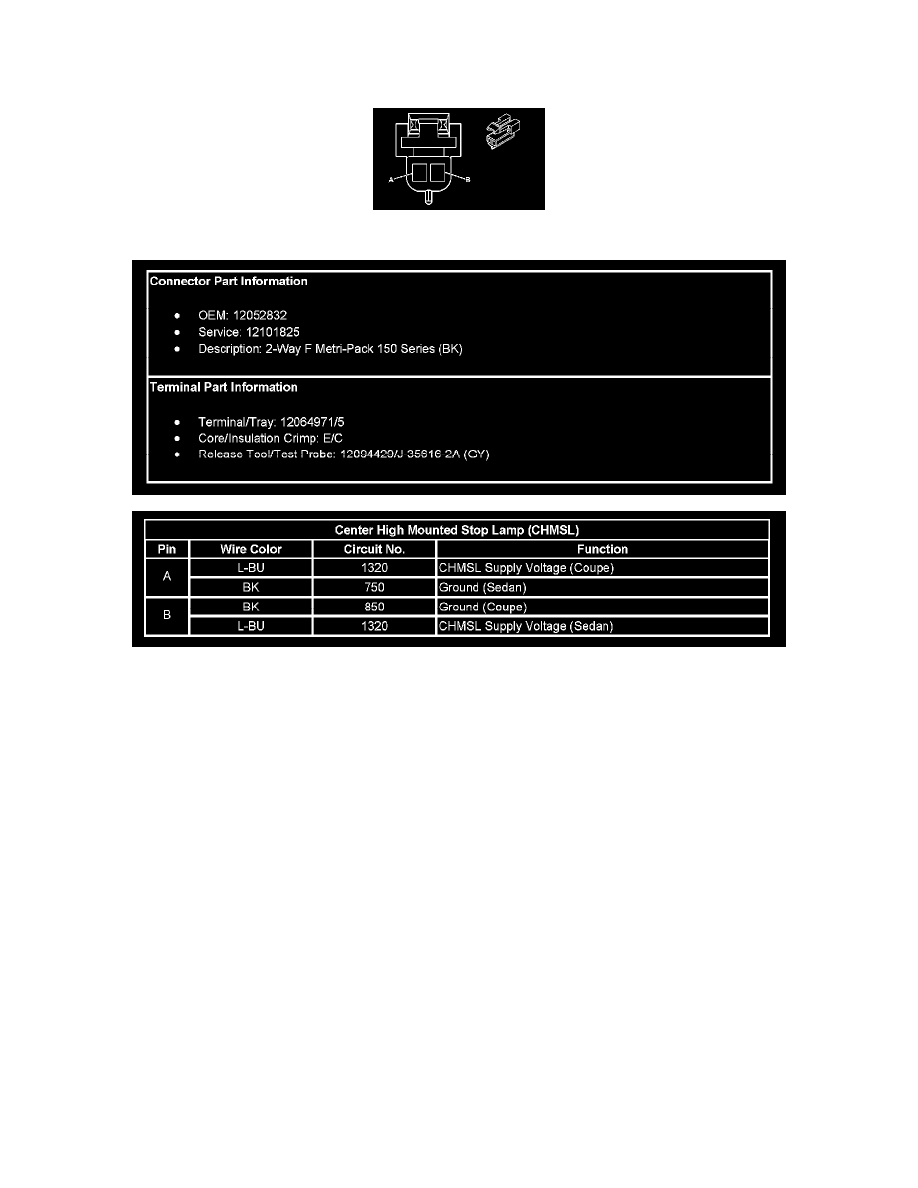

Center High Mounted Stop Lamp (CHMSL)

A/T Shift Lock Control Solenoid
