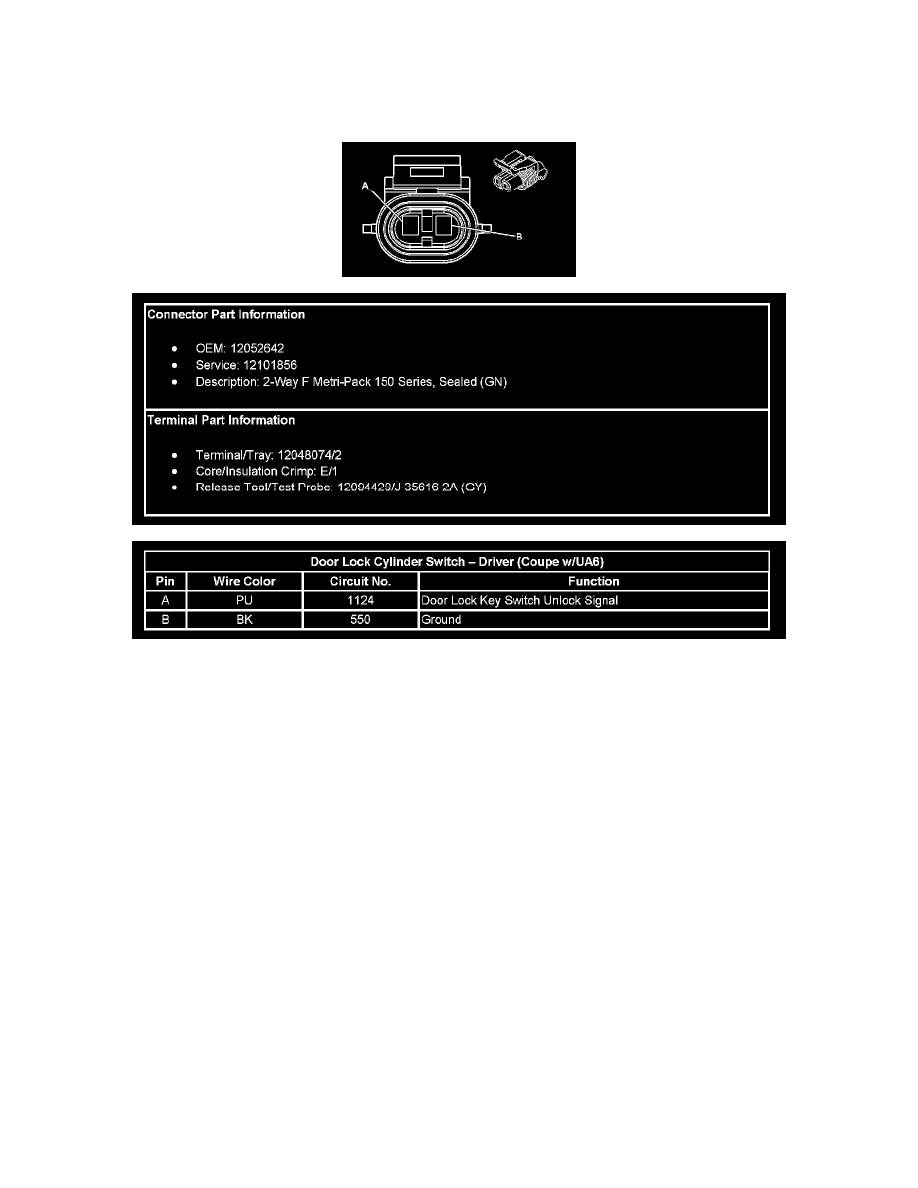

Door Lock Cylinder Switch: Diagrams

Vehicle Access Connector End Views

Door Lock Cylinder Switch - Driver (Coupe w/UA6)
