K 1500 Truck 4WD V6-262 4.3L (1991)
Ball Joint: Service and Repair
Upper
IMPORTANT: Raise the vehicle and support it with suitable safety stands.

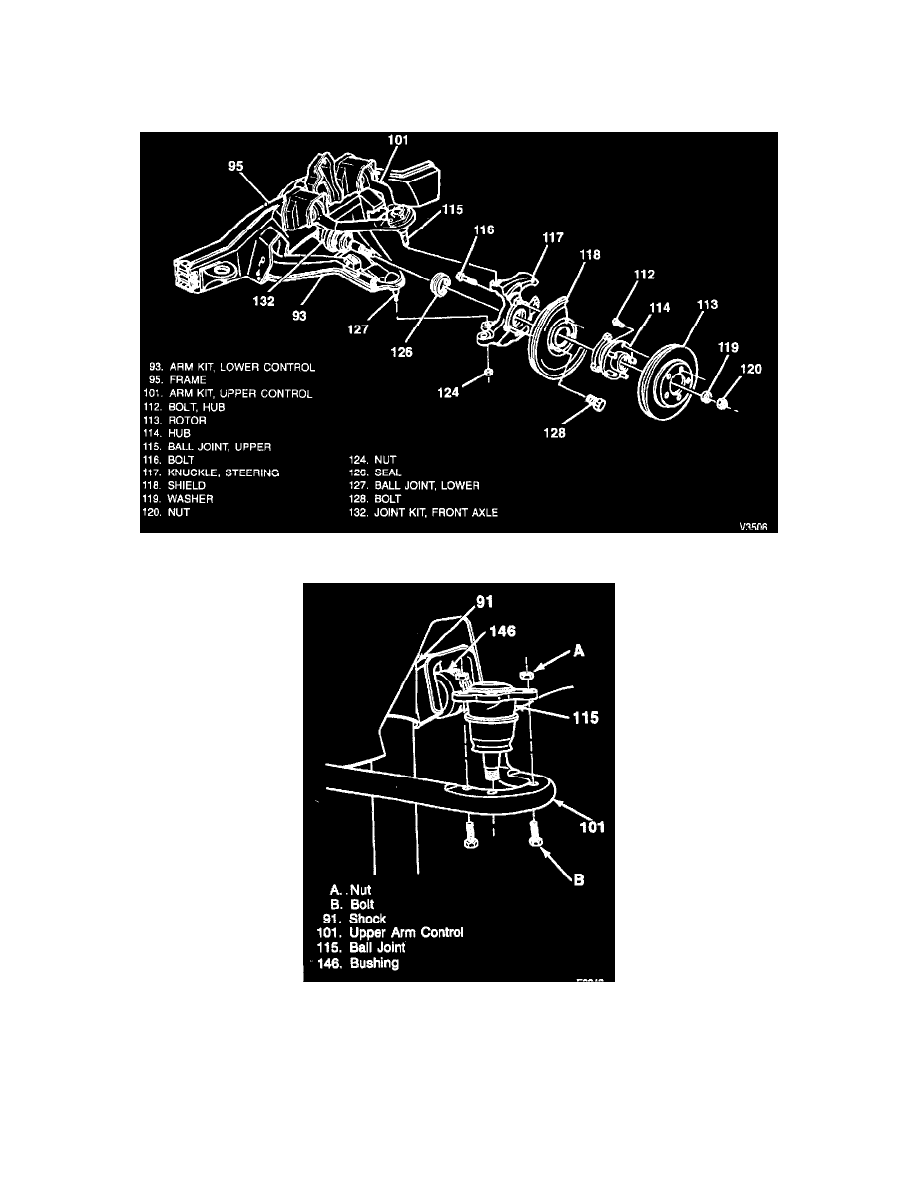

Hub, Knuckle, And Control Arm Components
Installing The Upper Ball Joint
REMOVE OR DISCONNECT
1. Tire and wheel.
2. Rivets from the ball joint (115).
A. Brake hose and bracket (142), upper control arm only.
