Air Door Actuator / Motor: Locations
Mode Door Motor

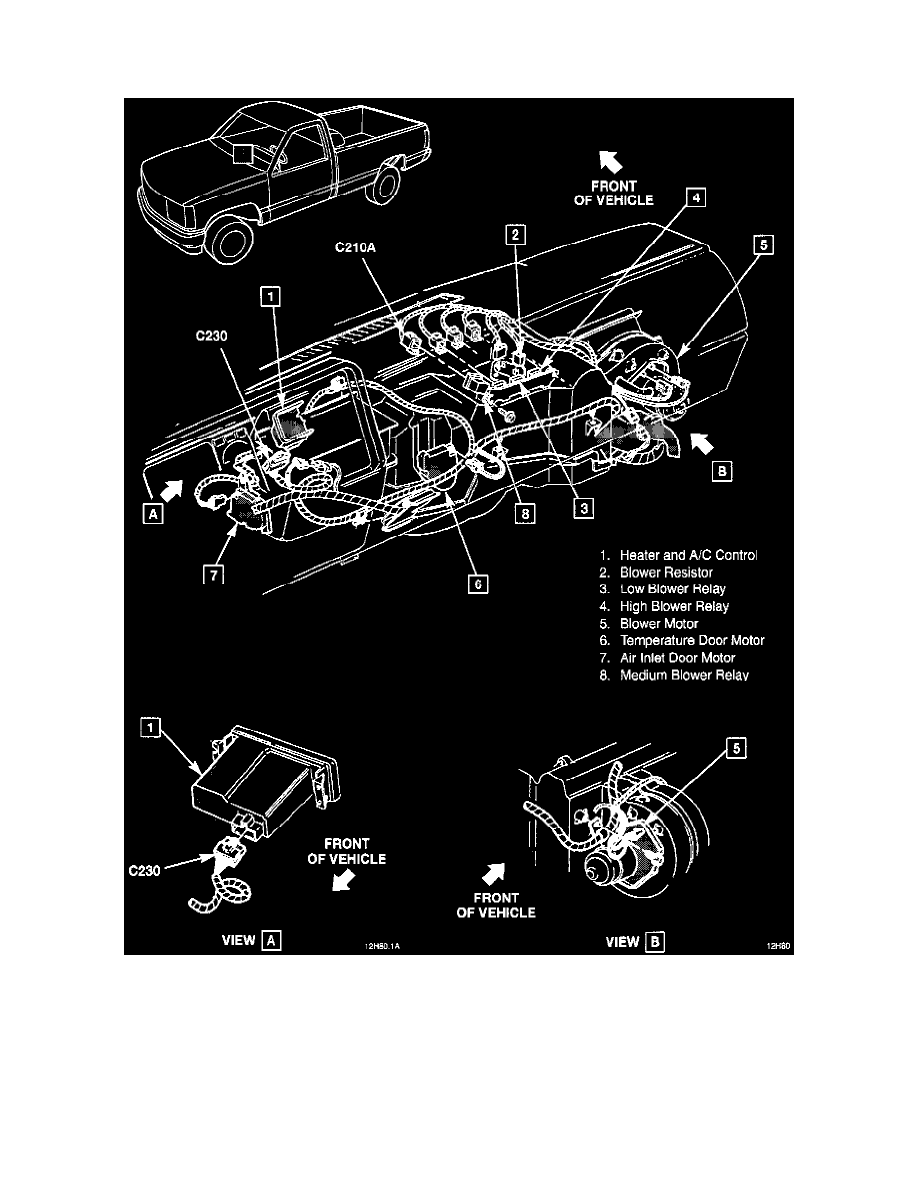

Heater and A/C Harness Wiring

Under I/P, on heater - A/C case.
