K 2500 Truck 4WD V8-393 6.5L DSL Turbo (1993)

  • Lighting and Horns
  • Daytime Running Lamp
  • Daytime Running Lamp Control Unit
  • Component Information
  • Locations

Page 1
background image

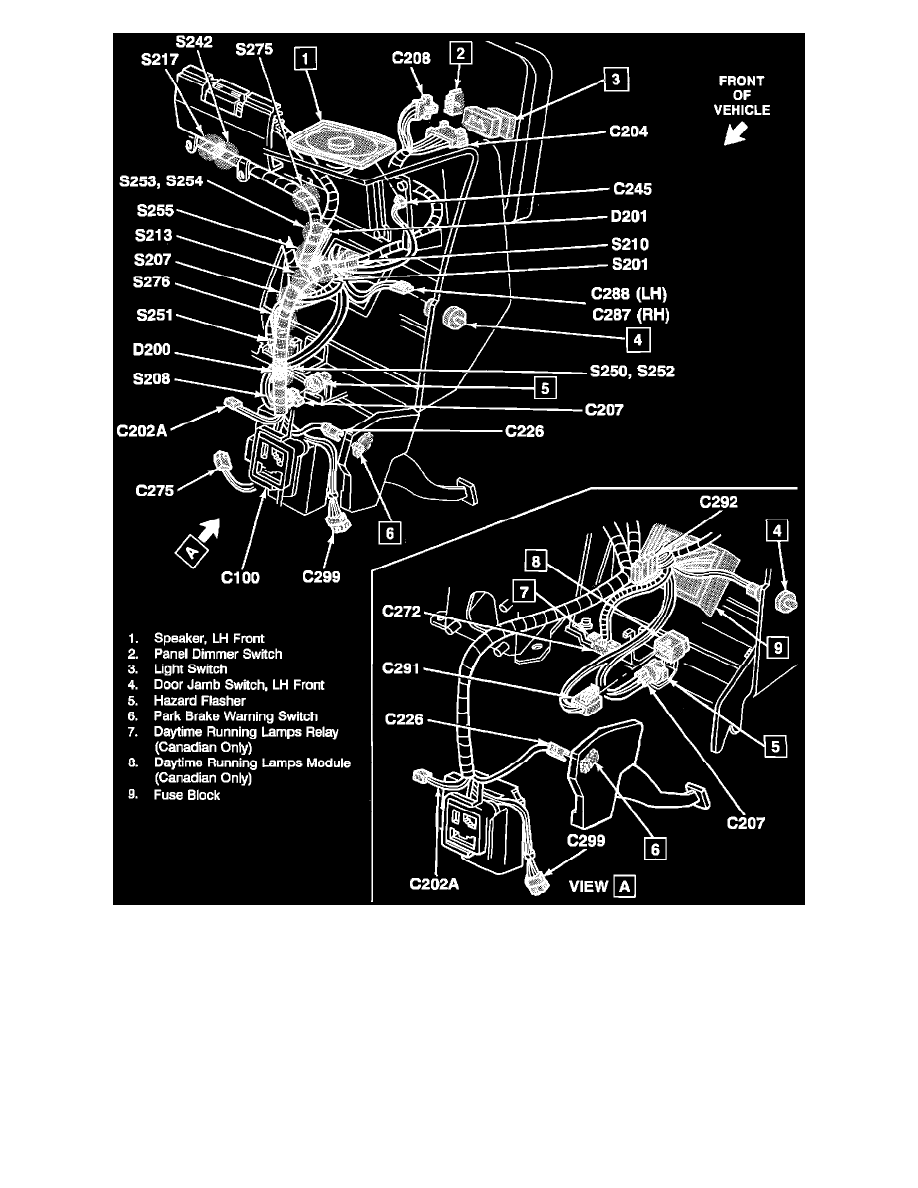

Left Hand Side Instrument Panel

  • Lighting and Horns
  • Daytime Running Lamp
  • Daytime Running Lamp Control Unit
  • Component Information
  • Locations
