Lumina V6-3100 3.1L VIN M SFI (1995)

Page 1
background image

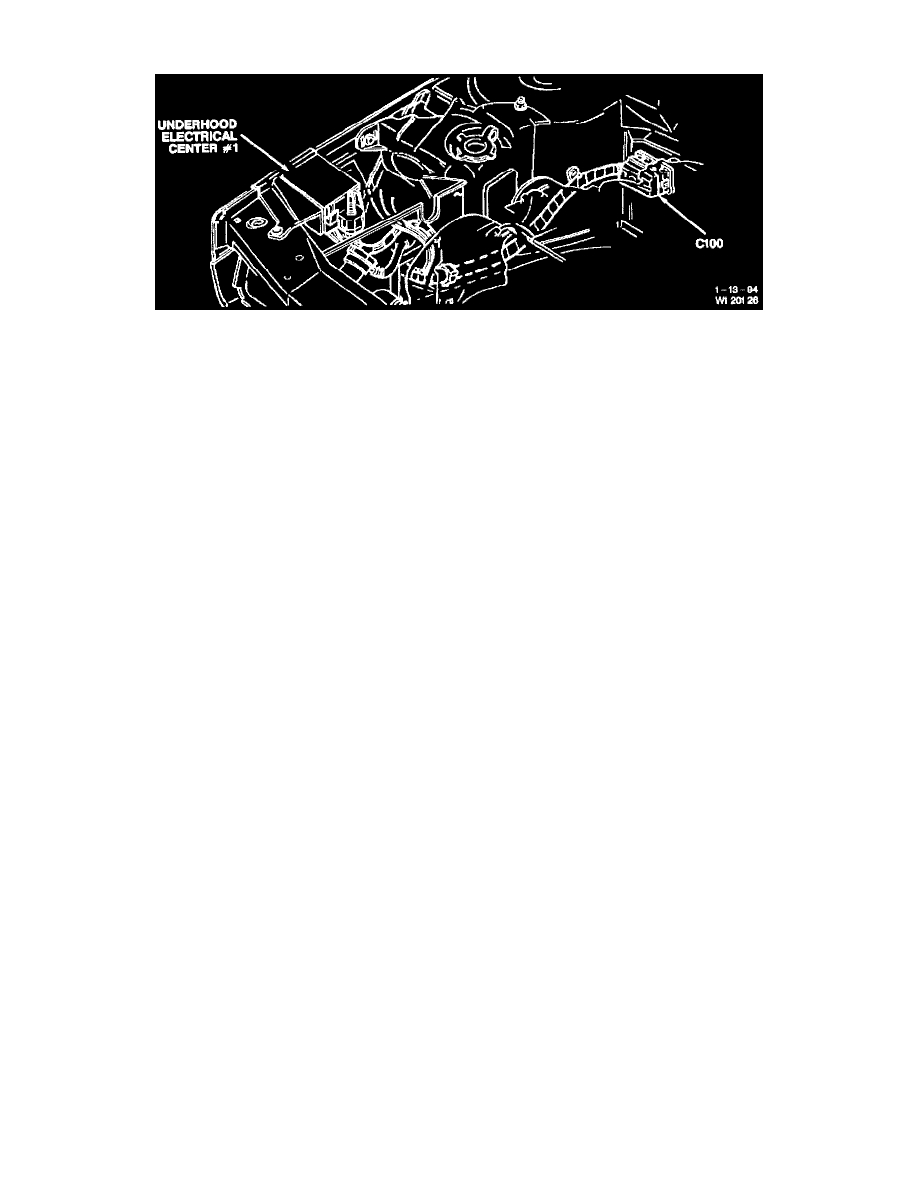

Radiator Cooling Fan Motor Relay: Locations

RH Side Of Engine Compartment
