Drive Belt: Specifications (page 2 of 2)

Make

Chevrolet

Model

Lumina APV

Engine

V6-191 3.1L

Year

1990

Section

Drive Belt

MaintenanceSpecifications · page 2 of 2

Drive Belt: Service and Repair

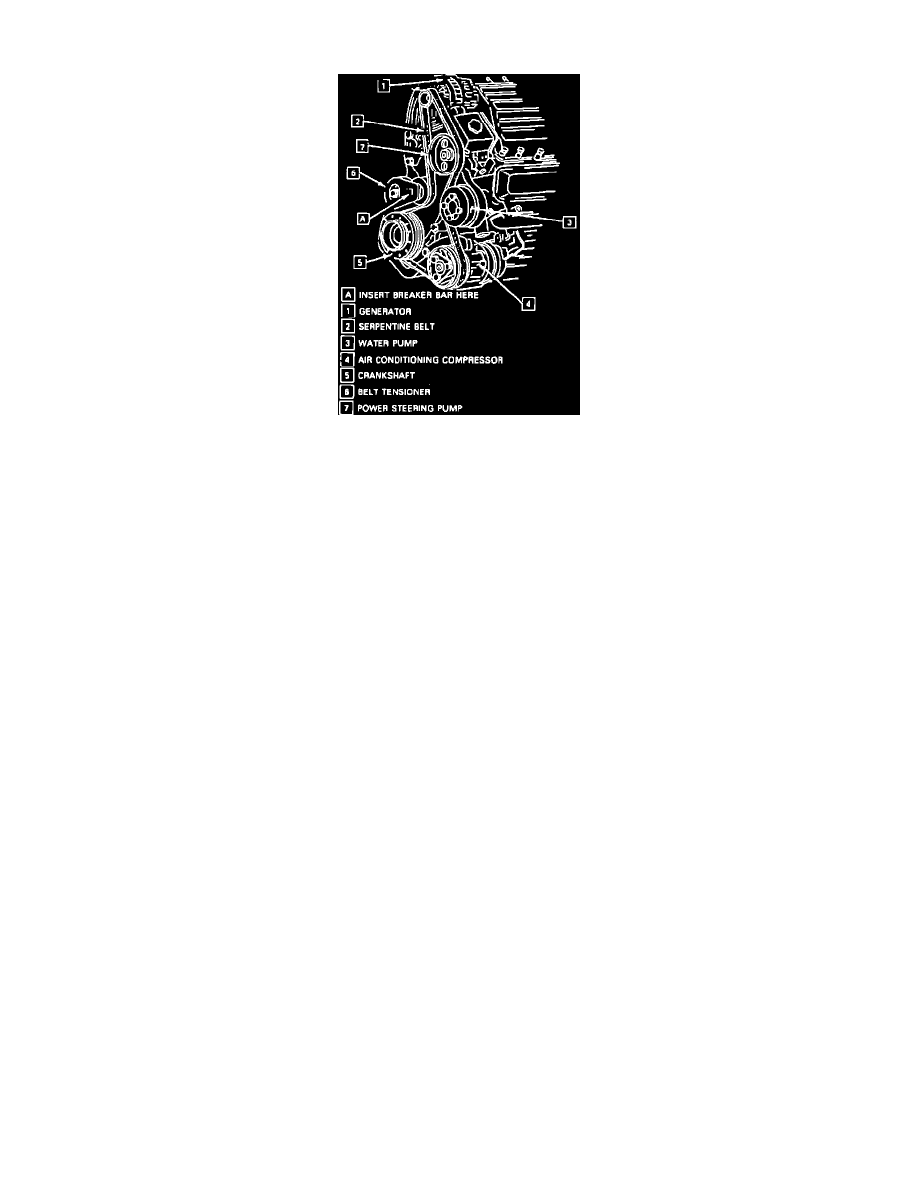

Fig. 8  Serpentine Belt Routing

1.

Remove belt guard, then rotate tensioner using a 3/8 inch breaker bar.

2.

Remove serpentine belt.

3.

Reverse procedure to install, refer to Fig. 8 for proper routing.
