Fuse Block|Diagrams|C1|Page 1797 > < Component Locations|Page 1794

Malibu L4-144 2.4L DOHC VIN T SFI (1998)

Page 1
background image

Fuse Block: Diagrams
C1

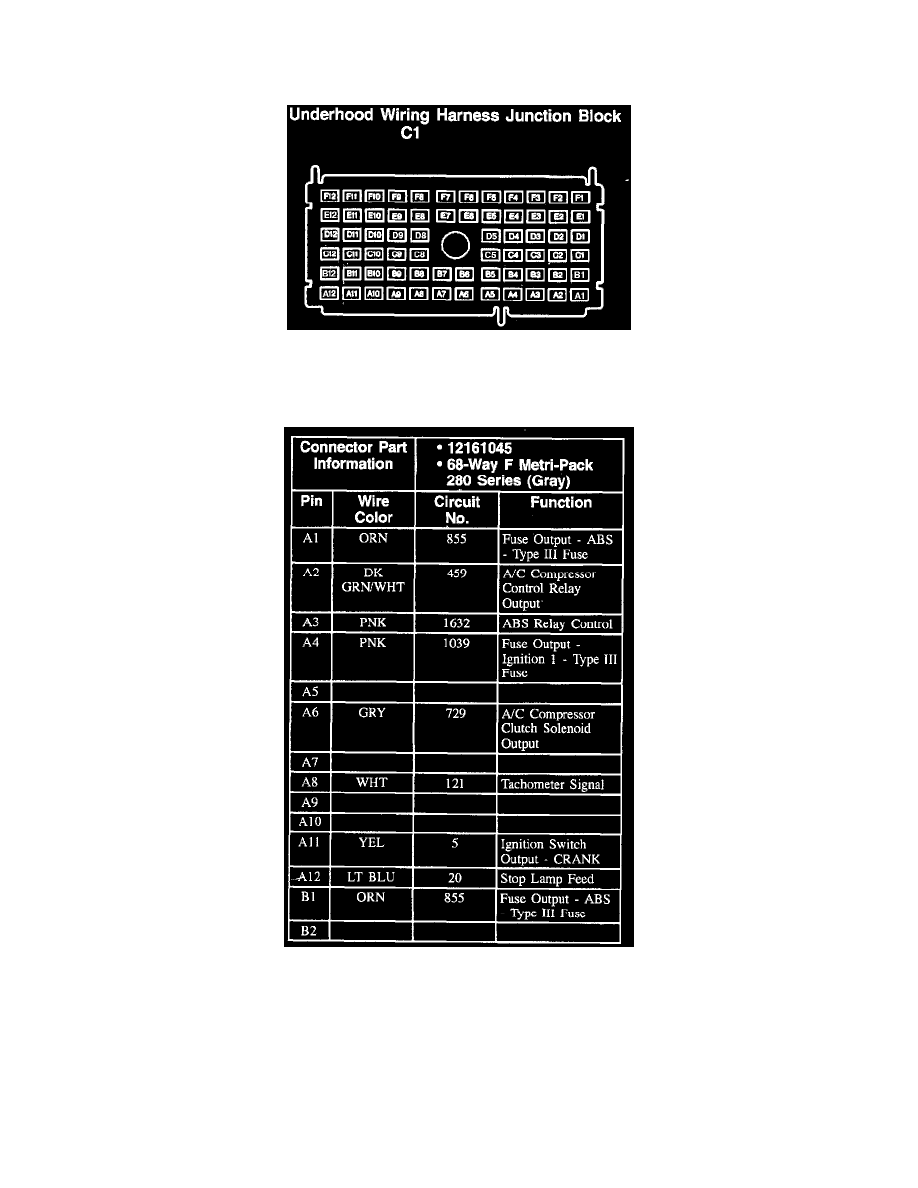

Underhood Wiring Harness Junction Block: C1

Pinout Description

Underhood Wiring Harness Junction Block: C1 (Part 1 Of 4)

Fuse Block|Diagrams|C1|Page 1797 > < Component Locations|Page 1794
