Crankshaft Position Sensor: Connector Views

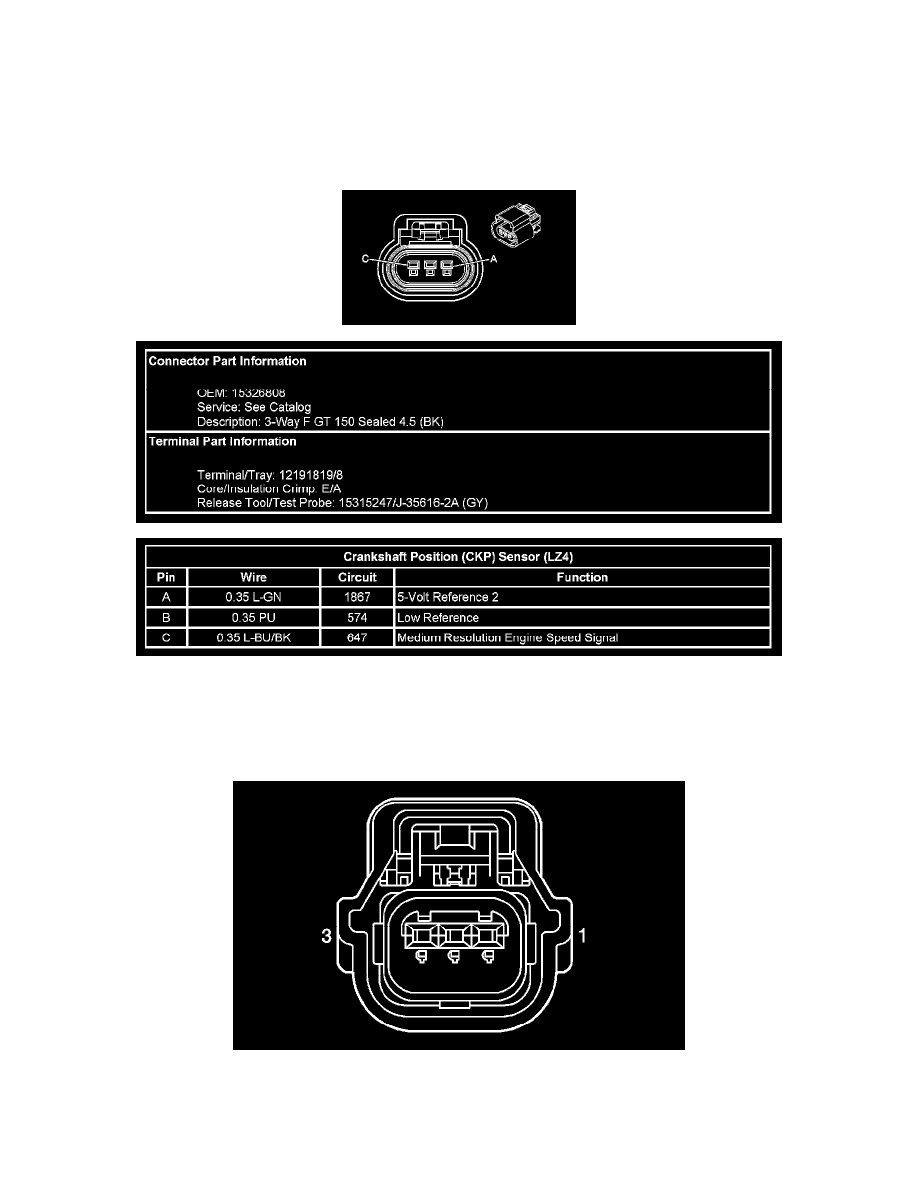

Crankshaft Position (CKP) Sensor (LZ4)

Component Connector End Views

Crankshaft Position (CKP) Sensor (LZ4)

Crankshaft Position (CKP) Sensor (Lat/LE5)

Component Connector End Views

Crankshaft Position (CKP) Sensor (LAT/LE5)
