Diagram Information and Instructions|Page 7572 > < Diagram Information and Instructions|Page 7570

Malibu L4-2.4L Hybrid (2008)

Page 9
background image

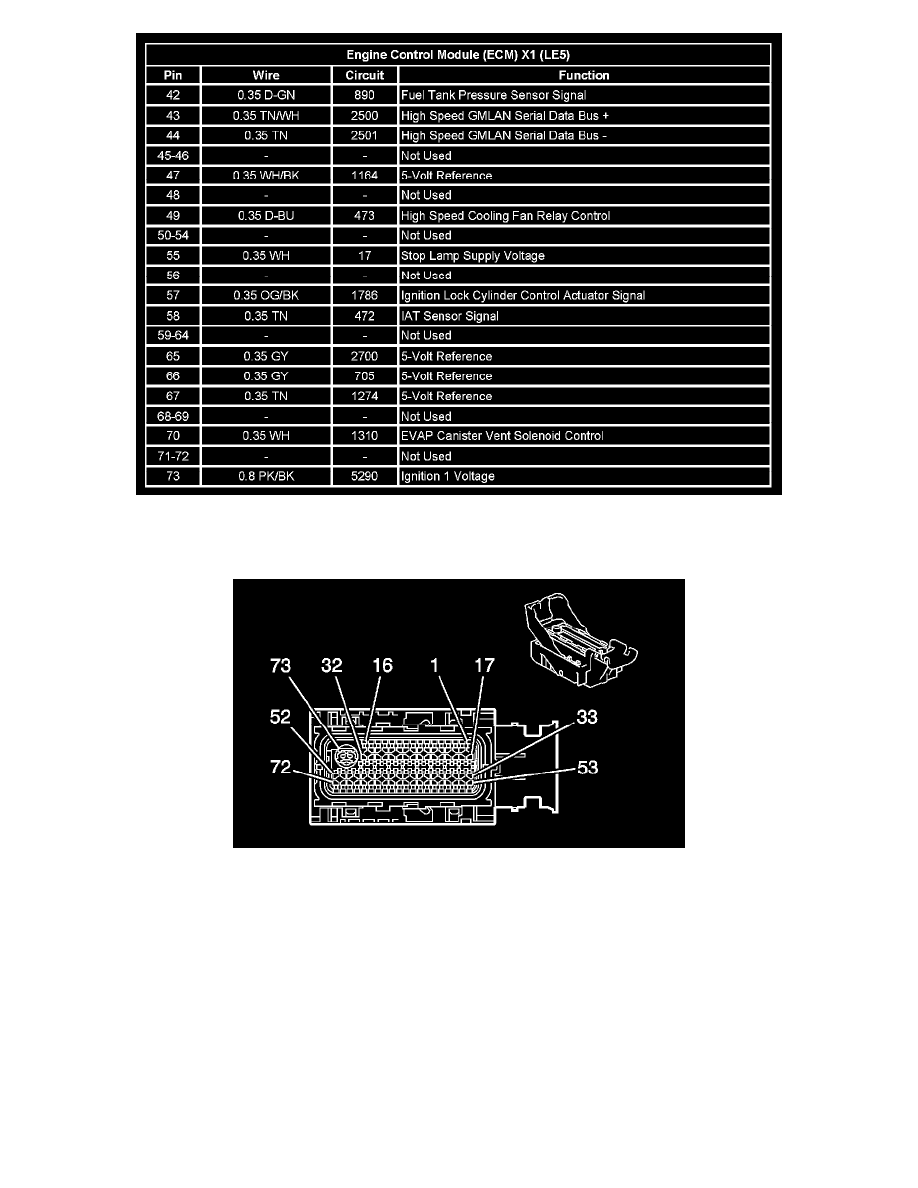

Engine Control Module (ECM) X1 (LE5) (Pin 42 To 73)

Engine Control Module (ECM) X2 (LAT)

Diagram Information and Instructions|Page 7572 > < Diagram Information and Instructions|Page 7570
