Malibu L4-2.4L Hybrid (2008)

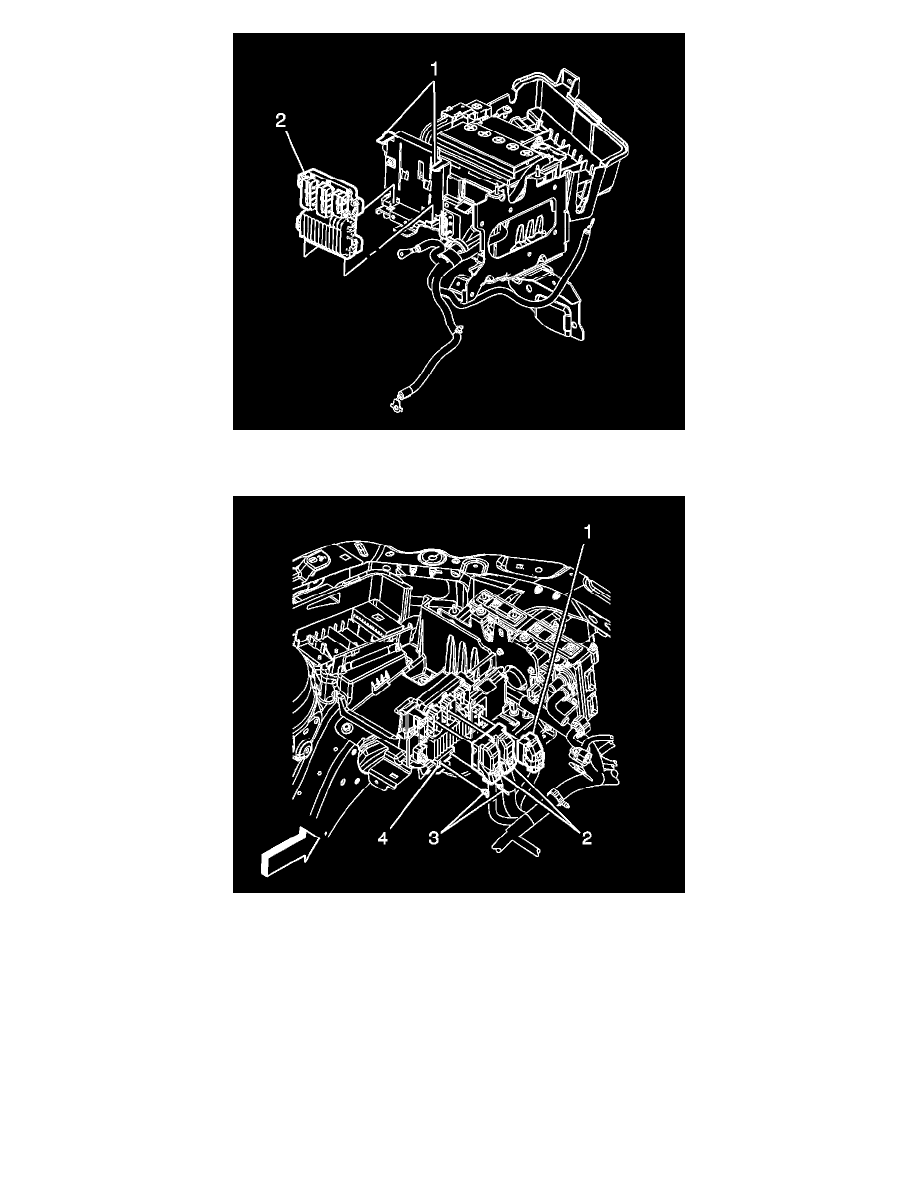

1. Set the ECM (2) into the bottom of the bracket and push the ECM towards the battery until the ECM snaps into place and is secured by the
retainers (1).
2. Connect the engine wiring harness electrical connectors (2) to the ECM.
3. Install the engine wiring harness clips (3) to the ECM bracket (4).
