Diagram Information and Instructions|Page 7960 > < Diagram Information and Instructions|Page 7958

Malibu L4-2.4L Hybrid (2008)

Page 3
background image

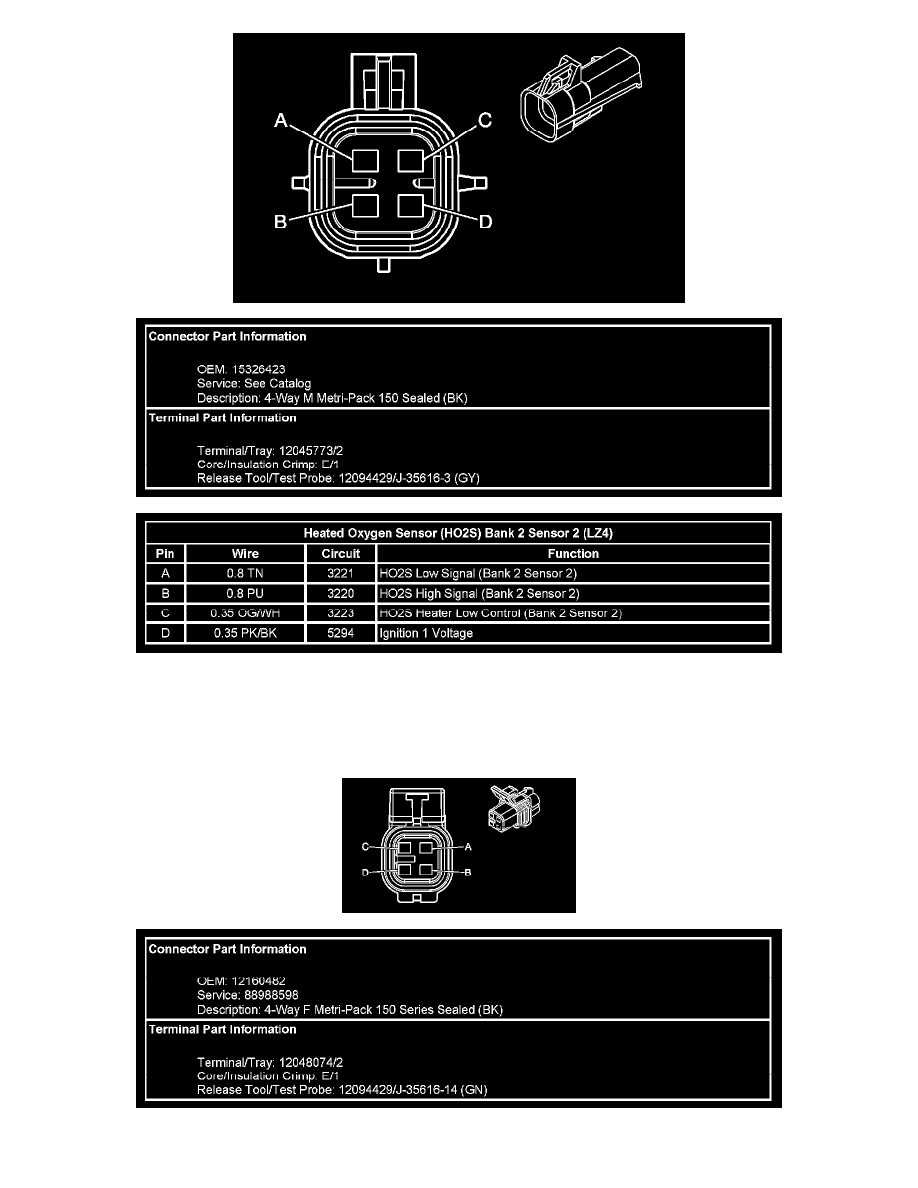

Heated Oxygen Sensor (HO2S) 1 / 2 (LAT/LE5)

Component Connector End Views

Heated Oxygen Sensor (HO2S) 1 (LAT)

Diagram Information and Instructions|Page 7960 > < Diagram Information and Instructions|Page 7958
