Malibu L4-2.4L Hybrid (2008)

Page 1
background image

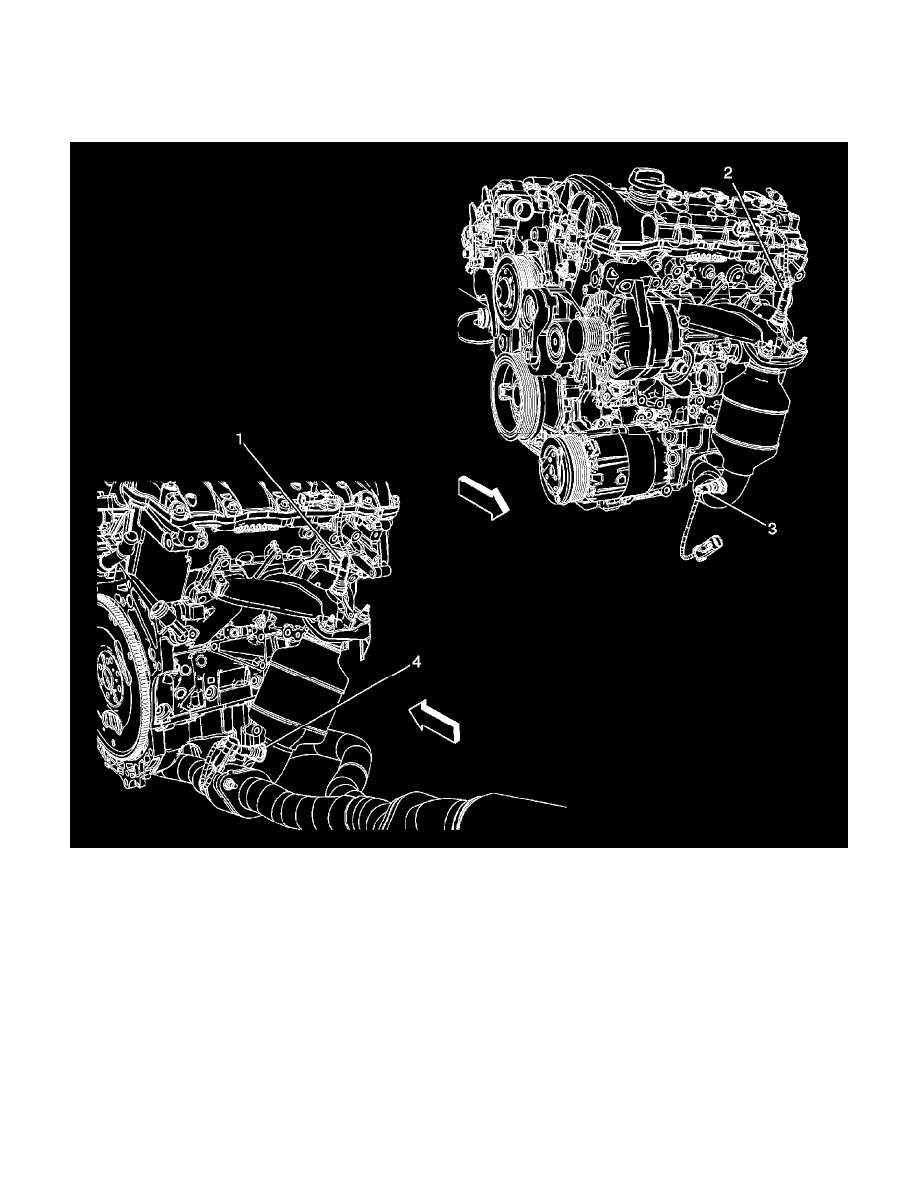

Oxygen Sensor: Locations

Powertrain Component Views

Oxygen Sensors

1 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
3 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
4 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

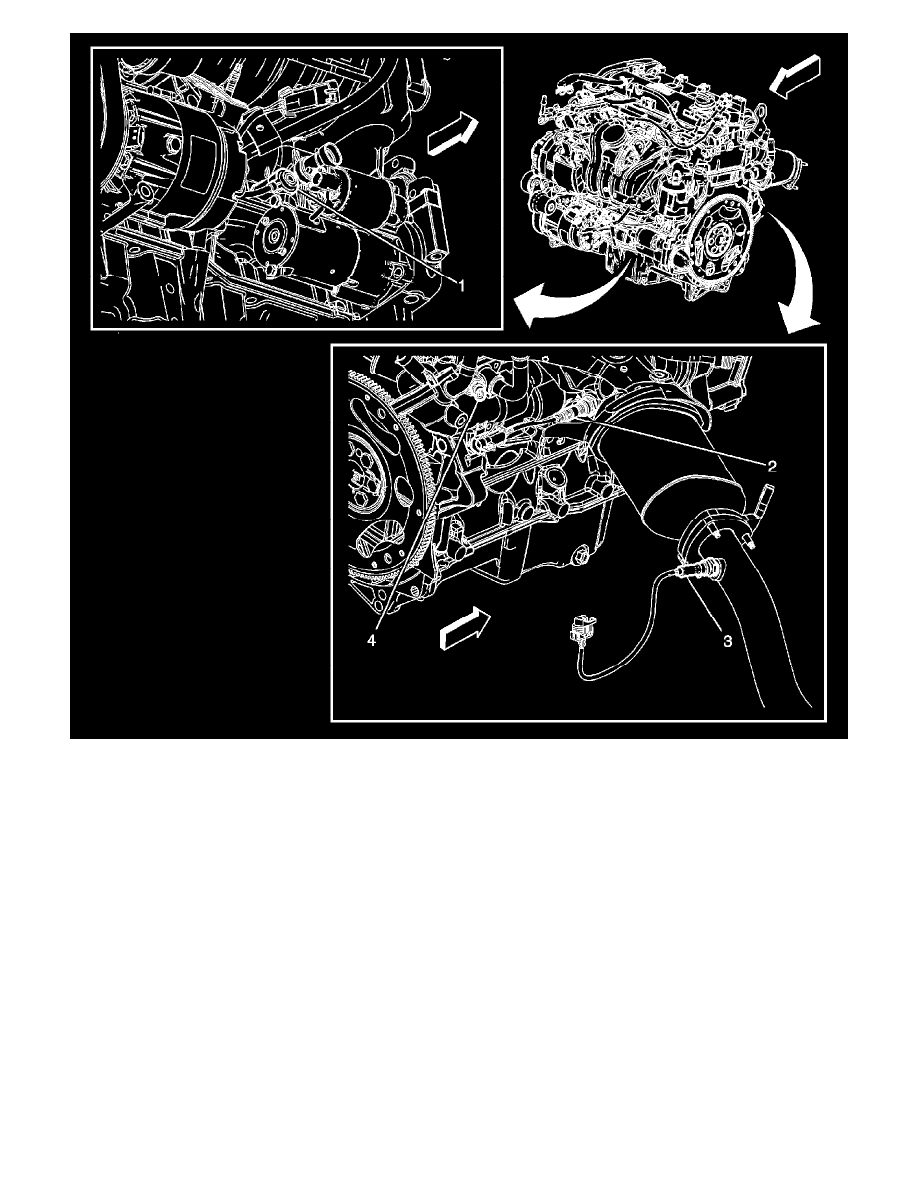

Front and Rear of Engine (LAT/LE5)
